16.5FOOT SMALL SPEED YACHTS BOATS TECHNICAL SPCIFICATION

1. Basic specifications

• Total length: 5.0 meters

• Breadth: 1.9 meters

• Standard passenger capacity: 8 people

• Maximum load: 1045kg

Engine adaptation:

Recommended maximum horsepower: 60HP (balanced power and fuel efficiency)

Applicable propulsion method: outboard engine (standard configuration)

4. Transportation and logistics

20-foot container: 2 boats per container

40-foot container: 4 boats per container

16.5FOOT CHINA SMALL YACHTS FEATURES

1. Spacious and flexible space design

• Golden ratio size: 5 meters in total length and 1.9 meters in width, it is still spacious even when fully loaded with 8 people, with a maximum load of 1045kg, which can easily accommodate picnic equipment, fishing tools and water entertainment equipment.




• Multifunctional deck layout: Both the front and rear decks are equipped with detachable cushions, which support one-click switching between "leisure lounge mode" and "party sitting mode" to meet the needs of various scenarios such as family gatherings and friends' socializing.




• Humanized details: non-slip deck, embedded cup holder, and 6 safety handrails to ensure the safety and convenience of activities.

2. High-strength fiberglass material

• Super durability: The hull adopts a multi-layer glass fiber and resin composite process, which is corrosion-resistant and salt spray-resistant, adaptable to freshwater and seawater environments, and has a service life of more than 15 years.




• Low maintenance cost: The surface is smooth and easy to clean, and no frequent painting is required, which reduces the long-term use cost.

3. Efficient power adaptation and controllability

• Power recommendation: Adapted to 60HP outboard engine, taking into account strong thrust and fuel economy, fast acceleration response, suitable for lake sightseeing, offshore exploration and other scenarios.




• Safe control: Optimized center of gravity distribution, with anti-capsulation design, novices can also easily control.

4. Convenience of global transportation

• Container adaptation:

  20-foot container can hold 2 ships, 40-foot container can hold 4 ships (double stacked), large single transportation volume, and logistics costs reduced by 40%.




• Lightweight design: The hull has a light weight and is equipped with a special fixed bracket to ensure zero damage during long-distance transportation.

5. Personalized customization service

• Flexible options: Supports customized projects such as hull painting, seat layout, intelligent navigation system, awning, etc.




• Scenario upgrade: The fishing version can be equipped with a live fish tank and searchlight; the family version can be equipped with child safety guardrails and folding dining tables.

6. Market verification and reputation guarantee

• High repurchase rate: The repurchase rate of global household users is 42%, and the renewal rate of leasing operators exceeds 60%.




• Authoritative certification: Passed CE certification and ISO9001 quality system, and the safety performance has been recognized by maritime agencies in many countries.




• User evaluation keywords: "Variable space", "Sturdy and durable", "Family travel artifact".

16.5FOOT SPEED LUXURY YACHTS STANDARD AND OPTIONAL ACCESSORIES

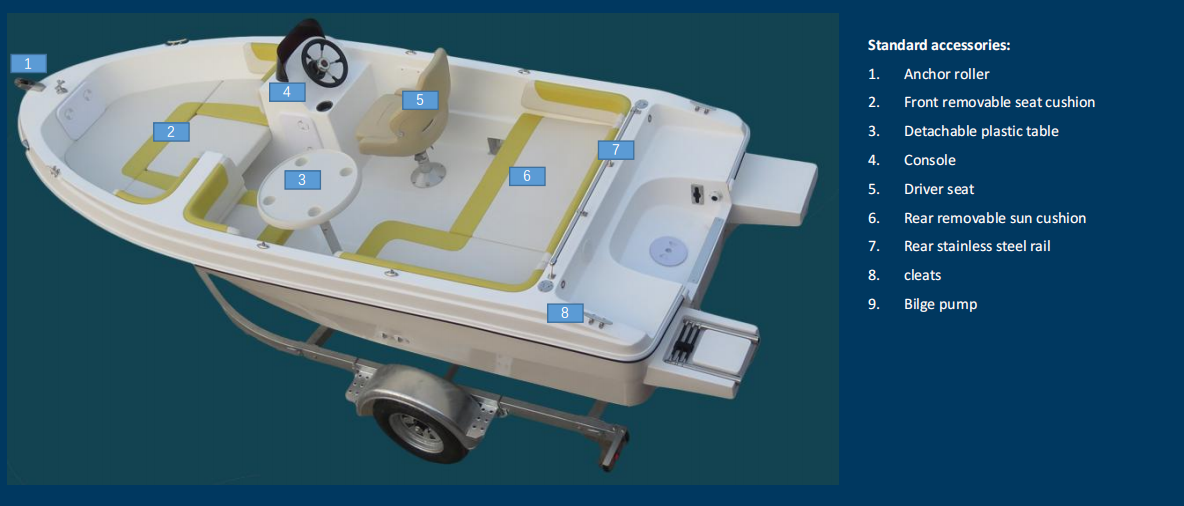

Standard accessories

1. Hull function system

• Anchor system: Anchor Roller

• Drainage safety: Bilge pump

• Mooring device: Cleats

2. Crew comfort configuration

• Front module: Front Removable Seat Cushion

• Rear module: Rear Removable Sun Cushion & Rear Stainless Steel Rail

• Driving control: Console & Driver Seat

3. Practical expansion components

Multi-function table: Detachable Plastic Table

Optional accessories

1. Power and control upgrade

• Fuel system: 80L aluminum fuel tank (gauge/gas vent/liquid level sensor/cables).

• Electric system: 60AH battery +plastic battery box.

• Steering system: mechanical steering system + stainless steel wheel.

3. Fishing professional kit

• Fishing enhancement: Fishing Pole Holder.

• Rear Deck Extension: Rear Platform+ Stainless Steel Ladder .

4. Comfort and Protection

• Shading System: Folding Canopy (3pcs Support).

• Shower System: 60L Aluminum Water Tank + Water Pump + Shower.

• Hull Protection: Boat Cover.

• Deck Upgrade: EVA Deck.

5. Appearance and Safety

• Personalized Painting: Special Fiberglass Gel-Coat Color .

• Seat Color: Special Seat Cushion Color .


• Safety Equipment: Life Jacket Set (CE Certified).


6. Transportation

• Trailer Adaptation: Trailer.




16.5FOOT SMALL YACHTS OPERATION AND SAFETY

Operation precautions

⚠️ Must check before sailing

✅ Load red line: Passengers + supplies ≤ 1045kg (8-person standard).

✅ Power adaptation: external engine ≤ 60HP, over-horsepower modification is prohibited.

✅ Seat fixation: removable seat cushions on the front/rear deck must be locked with buckles.

✅ Safety equipment: 1 life jacket per person + fire extinguisher + emergency whistle.

⚡ Specifications during sailing

✅ It is strictly forbidden to stand at the bow and travel at high speed

✅ Children must wear life jackets throughout the journey and sit in the middle seat

✅ Slow down to less than 15 knots when the wave height is > 0.5 meters

✅ Distance from shore ≤ 3 nautical miles (only for offshore version)

Emergency treatment

▸ Water inflow: immediately activate the dual drainage pumps and concentrate the weight on the stern

▸ Engine failure: deploy the anchor and call the maritime rescue phone

Safety maintenance

Daily maintenance

⏰ Cleaning: rinse the hull salt stains with fresh water, and strong acid solvents are prohibited

⏰ Seat maintenance: disassemble and air-dry to prevent mildew, apply UV protective agent every quarter

⏰ Screw inspection: tighten deck/engine fixing bolts every month

Regular maintenance

⏰ Every 50 hours: check the fuel line seal

⏰ Every six months: wax and polish the fiberglass hull (anti-ultraviolet aging)

⏰ Every year: professional organization inspects the ship (CE certification annual inspection is required)

⚠️ Maintenance warning

▸ Hull scratches: repair the fiberglass layer in time to avoid water seepage

▸ Winter suspension: drain the engine cooling water and cover the hull to prevent freezing
