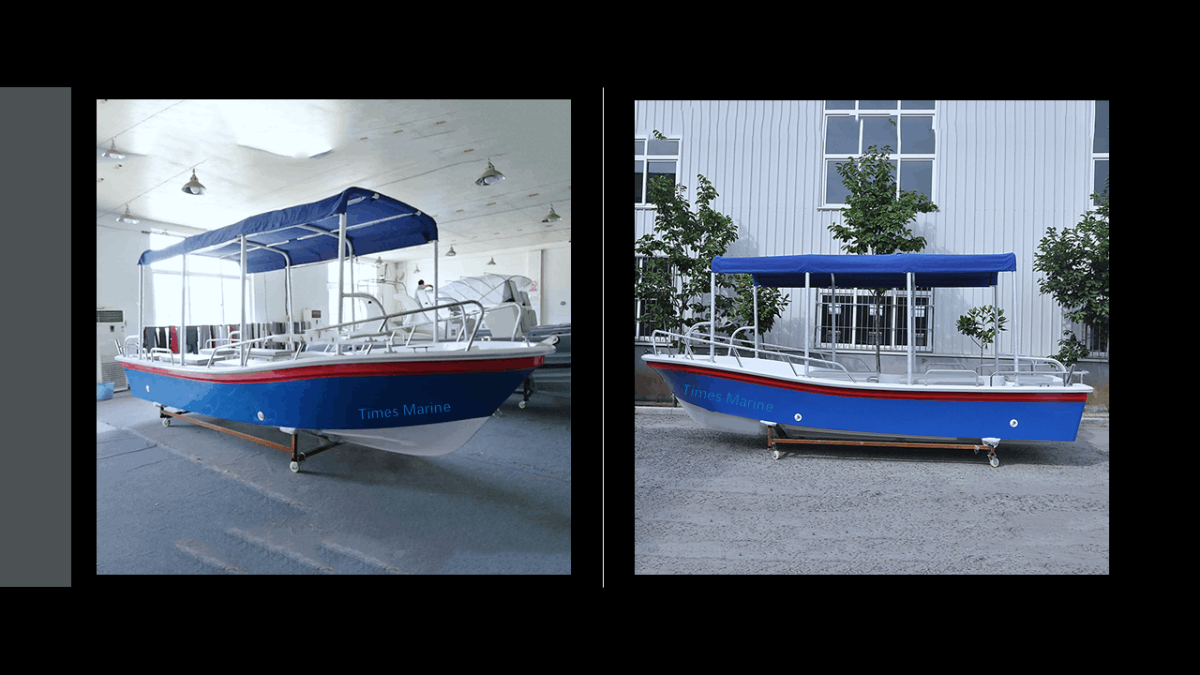

19FOOT FIBER PASSENGER BOAT TECHNICAL SPECIFICATION

Basic parameters

Total length: 5.8 meters

Breadth: 1.98 meters

Crew capacity & Weight

Crew: 8 people

Unladen weight: 645kg (including console, seat, fuel tank)

Maximum load capacity: 989kg

Powerful engine

Recommended horsepower: 50HP

Maximum horsepower: 70HP

Storage configuration

Fuel tank capacity: 150L

Water tank capacity: 80L

Live fish tank capacity: 80L

Transportation plan

20-foot container: 2 ships | 40-foot container: 4 ships

Note: When you installed the maximum horsepower engine, please confirm with factory.

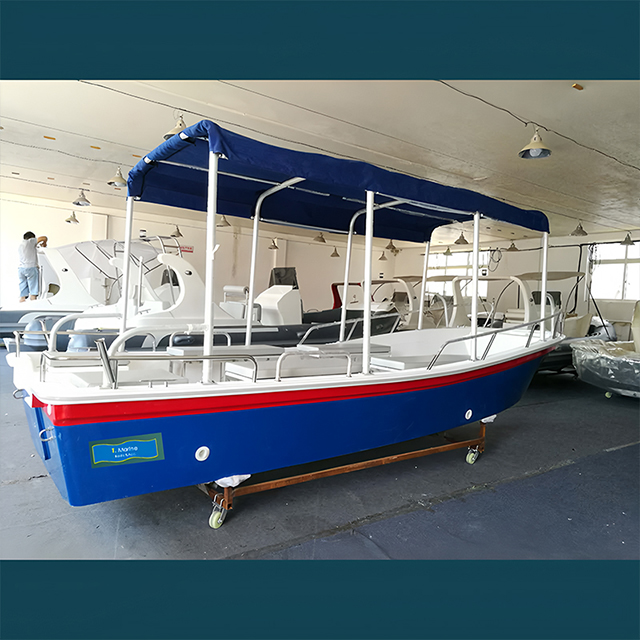

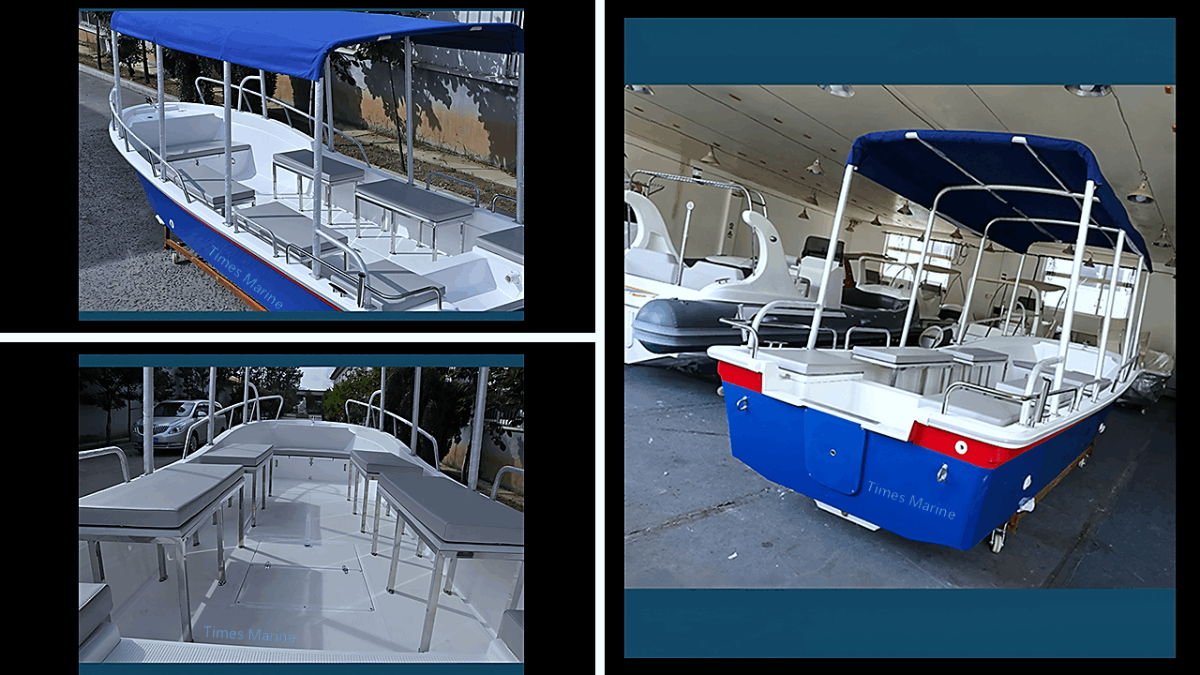

19FOOT 8 PASSENGERS PANGA BOAT FEATURES

Panga features

1. Unique double hull design: keeps the deck neat and tidy, and has the versatility of both fishing boats and leisure boats. Designed for rough sea conditions, suitable for both deep and shallow waters.

2. Connected by longitudinal and transverse keels hull structure: it enhances the stability and sturdiness of the ship on the water.

3. PVC CORE material deck: ensures that the hull is lighter, stronger and more waterproof.

4. PANGA's traditional high bow design: provides buoyancy for fishing nets and minimizes the impact of the bow.

 All-round configuration upgrade

1. 150L fuel tank: ultra-long endurance, worry-free exploration of the open sea.

2. 80L water tank + 80L live fish tank:fishing, fish storage, fresh water supply in one step.

3. Modular expansion: reserved interface, adaptable to hydraulic steering, awning and other accessories.

Technical highlights

1. Tensile strength: FRP material is impact-resistant and can sail stably in complex waters.

2. Quick assembly: 2/4 ships can be loaded in 20/40-foot containers, and global logistics are efficient and convenient.

3. Environmentally friendly design: low-fuel engine + recyclable materials, green water travel.

19FOOT PASSENGER BOAT STANDARD AND OPTIONAL ACCESSORIES LISTS

Standard accessories

1. Safety and mooring

• Stainless Steel Cleats

• Bollard and Anchor Roller

• Bilge Pump

2. Storage and Seating

• Stern Seat with Storage Box

• Front Seat with Storage Box

• Anchor Storage Box

3. Power and Energy

• 150L Fuel Tank with Oil Gauge, Cable

✨ Optional accessories

1. Control System Upgrade

• Hydraulic Steering with Cable

• Mech Steering with Cable

2. Fishing Special

• Stainless Steel Fishing Pole Holders

3. Protection and Sunshade

• Stainless Steel/Aluminum T-Top

• Big Canopy Cover ¾ Boat

• Foldable Canopy

• Boat Cover

4. Comfort and Convenience

• EVA Deck

• Stainless Steel Ladder

• 80L Water Tank

• Battery Box and Switch

5. Structural Enhancement

• Front Stainless Steel Rail

• Back Stainless Steel Rail

• Hydraulic Support Pole

6. Exterior Customization

• Special Fiberglass Gel-coat Color

• Special Seat Cushion Color

7. Power and Transportation

• Outboard Motor

• Trailer

8. Safety Equipment

• Life Vest

Customization Instructions

1. Standard configuration meets basic needs: safe mooring, basic storage, power system are all available.

2. Optional accessories can be freely combined: flexible upgrade according to fishing, leisure, and commercial scenarios.

3. OEM/ODM deep customization: supports appearance color, functional modules, brand logo personalization.

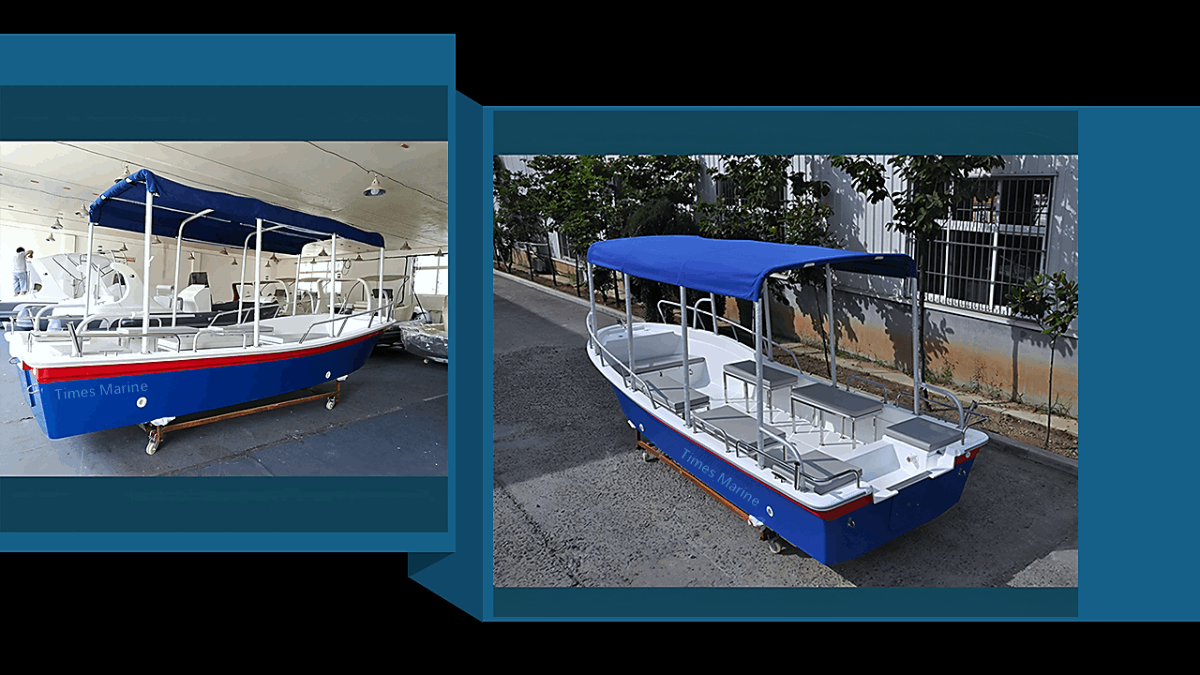

19FOOT  FRP PASSENGER BOAT OPERATION AND SAFETY

Operation Guide

1. Pre-departure Inspection

• Hull Inspection: Check the fiberglass surface for cracks and ensure that all seams are sealed.

• Engine Inspection: Confirm that the engine, propeller and fuel system (150-liter tank) have no leaks and sufficient fuel.

• Safety Equipment: Equipped with 8 life jackets, 1 fire extinguisher, navigation lights and 1 first aid kit.

2. Safety Rules

• No Overloading: Maximum 8 passengers or total weight 989 kg.

• Weather Alert: Stop sailing if there is bad weather.

• Live Water Tank Maintenance: Clean the 80-liter live water tank regularly to prevent odor and contamination.

3. Navigation Tips

• Engine Use: Please stick to 50-70 horsepower engines; avoid overloading for a long time.

• Weight Balance: Distribute passengers/equipment evenly to prevent tilting.

4. Mooring and Storage

• Secure Anchoring: Use the double anchor in the storage box to maintain stability.

• Protect the hull: Cover with UV-resistant tarpaulin to prevent fiberglass aging.

• Winter preparation: Drain the 80-liter freshwater tank and pipes to avoid ice.

️ Maintenance and care

1. Routine inspection

• Monthly: Check the fiberglass for scratches and repair leaks in time.

• Every 50 hours: Change engine oil; Check propeller/shaft every 100 hours.

• Quarterly: Test battery health, line waterproofing, and inverter function.

2. Deep cleaning

• Hull cleaning: Rinse seawater residue with fresh water; Wax the fiberglass every 6 months.

• Live water tank/water tank: Clean with food-grade disinfectant to kill bacteria.

• Deck care: Wipe the EVA anti-skid mat regularly to maintain grip.

3. Key protection

• Rust prevention: Apply anti-rust grease to metal parts (anchor, railing) every quarter.

• Seal upgrade: replace door/live tank seals annually to ensure watertightness.

• Structural inspection: hire professionals to check hull joints and buoyancy every two years.

4. Emergency response

• Hull damage: start bilge pumps immediately and go ashore.

• Engine failure: drop anchor and use emergency signals (whistle/flare).

• Fire risk: use fire extinguisher first, then evacuate all personnel.
