43 FOOT ADVANCED FIBERGLASS BOATS TECHNICAL PARAMETER

DIMENSIONS

▸ Full Length : 13m

▸ Full Width : 3.07m

▸ Waterline Length:9.86m

▸ Moulded Depth : 1.51m

▸ Draft : 0.48m

CAPACITY & WEIGHT

▸ Max Persons : 11+1

▸ Max Loading : 6370 kg

▸ Weight : 3500 kg

PERFORMANCE

▸ Engine Configuration : 1 or 2 engines

▸ Max Recommended HP : 300HP

▸ Speed : 38 knots

Note : Confirm with the factory before installing maximum HP engines.

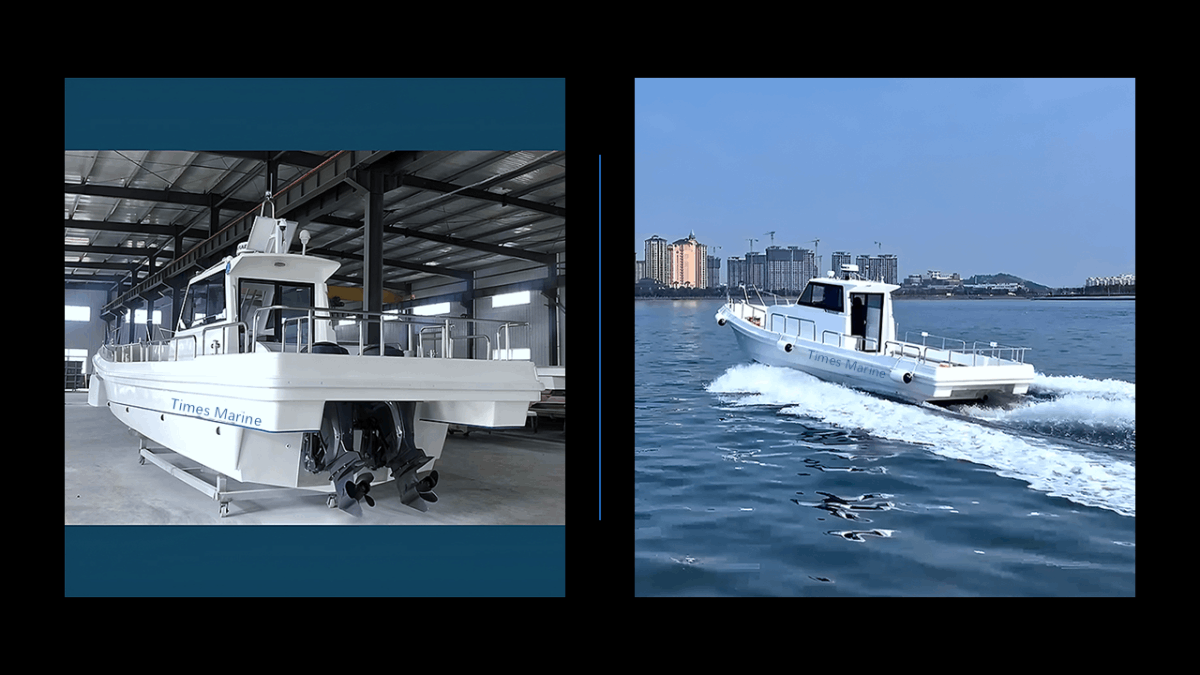

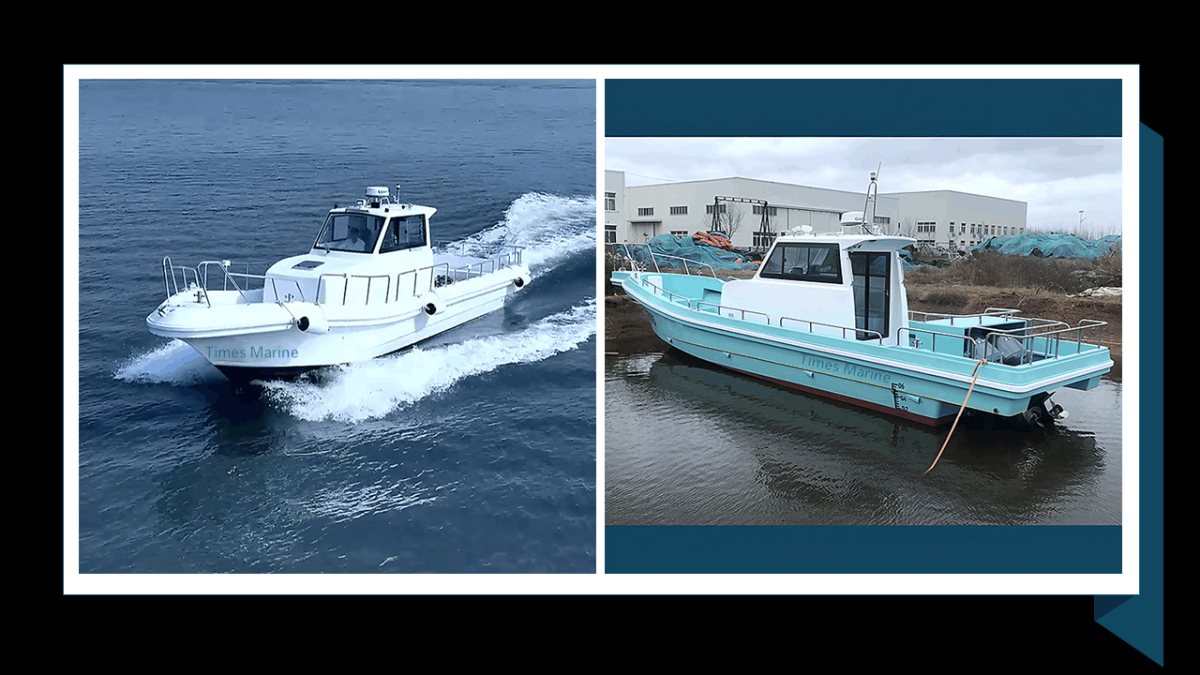

43 FOOT FASHION FIBERGLASS BOATS FEATURES

Core features

1. Professional hull design

• Fully enclosed safety cabin:

  All-weather protection, wind and wave resistance increased by 50%, no worries about sailing in bad weather.

• Lightweight upgrade:

  Advanced FRP material, hull strength increased by 30%, weight reduced by 15%, more efficient endurance.

• Super large space:

  13m×3.07m wide body layout, carrying capacity of 6370kg, suitable for fishing, transportation, party and other scenarios.

2. Powerful power system

• Yamaha 300 horsepower engine: single engine speed of 38 knots, double engine power doubled + redundant safety guarantee.

•  Ultra-long endurance: 800L fuel tank supports long sea operation, and a single supply covers more than 200 nautical miles.

•  Stable as a rock: full displacement of 6.37 tons, wave resistance up to grade 4 sea conditions, and a 60% reduction in turbulence.

3. Multi-function scene adaptation

• Deep sea fishing:

  The deck is reserved for fishing gear bracket holes, which can be expanded to the live fish compartment and sonar detection module.

•  Leisure and entertainment:

  The fully enclosed cabin can be equipped with air conditioning and audio-visual system, and can easily accommodate a party of 12 people.

•  Efficient transportation:

  6370kg load, meet the needs of fishing and bulk transportation of materials, a powerful tool for commercial operation.

 4. Customization OEM/ODM services:

From seat material to functional zoning, we fully support personalized customization.

43 FOOT QUALITY FIBERGLASS BOATS STANDARD AND OPTIONAL ACCESSORIES

Standard configuration

Safety and Ship Structure

• Safety warning: anti-collision fender rubber strip

• Mooring system: 1 set of stainless steel U-bolts and 1 set of mooring bolts

• Drainage guarantee: automatic drainage pump x 1+stainless steel drainage outlet x 2

• Hull reinforcement: 1 set of bow/cabin handrails+1 roller

Power and Handling

• Fuel system: 800L fuel tank x 1+stainless steel fuel inlet x 1

• Driving assistance: oil level sensor x 1+battery box x 1

• Control components: driver's seat x 1+switch panel x 1 set

Cabin facilities

• Fully enclosed cabin: with cushioned cabin x 1+bathroom x 1

• Ventilation and lighting: front windshield x 1+double-sided sliding windows x 2

  +rear sliding window x 1

• Cleaning system: 1 set of wipers+1 fresh water flushing port

Electrical system

• Basic lighting: 2 side lights+1 searchlight

• Power management: battery switch x 1+fuel tank self closing switch x 1

⚡  Optional upgrade configuration

Professional Navigation and work

• Radar navigation: 9-inch Garmin chart plotter (GPS+radar integrated)

• Hydraulic system: Improve steering and equipment handling accuracy

• Electric anchor machine: 12V automatic anchoring, saving 80% effort

• Yamaha engine: F150FETX/FL150FETX powerful

Fishing Enhancement Set

• Stainless steel fishing rod rack x 2

• Ship horn x 4

• Fishing station x 12 (with fixed card slot)

• Bottom anti fouling paint: prevents shellfish from adhering and extends the life of the ship's hull

Comfort and Convenience

• Electric toilet: One click flushing, upgraded hygiene

• Rear deck storage compartment x 1 (waterproof design)

• Boarding ladder x 1 (foldable anti slip aluminum material)

Secure communication

• VHF radio station: maritime emergency communication support

• VIS collision avoidance system: intelligent warning of collision risk

43 FOOT OFFSHORE FIBERGLASS BOATS  OPERATION AND SAFETY

⚓  Precautions for operation

1. Pre voyage inspection

• Load control: maximum load capacity ≤ 6370kg, passenger capacity ≤ 12 people, and materials evenly distributed.

• Engine status: Check the Yamaha 300HP external engine for fuel, coolant, and propeller entanglement.

• Safety equipment: 12 life jackets, 2 fire extinguishers, complete signal lights, fully enclosed cabin door sealing test.

2. Standards during navigation

• Speed management: The maximum speed of 38 knots is limited to open water areas, and the speed limit in complex areas is ≤ 20 knots.

• Weather response: If the wave height is greater than 1.5 meters or the wind force is greater than or equal to level 7, immediately return to seek shelter.

• Dual engine collaboration (optional): Load balancing during dual machine operation to avoid single machine overload.

3. Parking and Storage

• Anchor safety: Use stainless steel anchor chains (≥ 8mm) and Bruce anchors (≥ 10kg), with a deep-sea anchoring angle of 45 °.

• Fuel tank management: Long term shutdown and emptying of 800L fuel tank to prevent fuel deterioration and corrosion of pipelines.

• Ship protection: Cover with dust cover to prevent fiberglass from aging due to exposure to sunlight.

Key points of maintenance and repair

1. Routine maintenance

• Ship cleaning: Rinse with fresh water to remove salt, and ensure that the anti-skid grooves on the deck are unobstructed

• Engine maintenance: Change the engine oil every 100 hours and check the fuel filter

• Electrical system: Testing navigation radar (optional), cabin lighting, drainage pump

2. Regular maintenance (every 6 months)

• Ship inspection: There are no cracks on the surface of the fiberglass, and the joint sealant has not fallen off.

• Fuel tank and pipeline: The inner wall of the 800L fuel tank is rust proof, and there is no leakage in the oil circuit.

• Anchor system: lubricate the anchor chain winch and check the braking performance.

3. Seasonal deep maintenance

  ▸ Anti biological attachment: Apply anti fouling paint to the bottom of the ship every year to prevent barnacles from parasitizing.

 ▸ Winter protection: Drain the cooling water, disconnect and store the battery, and charge it regularly.

Emergency treatment

 ▸ Emergency water intake: Activate automatic drainage plug+pumping pump to investigate leakage points.

 ▸ Engine failure: Dual engine boat switches to standby engine, single engine boat calls for rescue.
