26.5 FOOT FISHERMAN BOAT TECHNOLOGY SPECIFICATION

DIMENSIONS

▸ Full Length : 8m

▸ Full Width : 2.28m

▸ Moulded Depth : 1.04m

▸ Draft : 0.32m

CAPACITY & WEIGHT

▸ Max Persons : 9+1

▸ Max Loading : 2760 kg

▸ Weight : 1300 kg

▸ Full Displacement : 2.76t

PERFORMANCE

▸ Engine Configuration : 1 or 2 engines

▸ Max Recommended HP : 2*115HP

▸ Speed : 28 knots

ADDITIONAL INFO

▸ 40ft Container : 2 units

▸ Navigation Area : ≤10 nautical miles from shore

Note : Confirm with the factory before installing maximum HP engines.

26.5 FOOT FISHERMAN FISHING BOAT FEATURES

 ✨ Hard-core performance

Lightweight hull innovation: advanced fiberglass technology, 15% weight reduction, double upgrade of strength and corrosion resistance, 5-year warranty and reputation escort.

️ Space master, all-round scene

• Semi-enclosed cabin: sunshade and rain shelter, integrated storage and rest, worry-free sailing in bad weather.

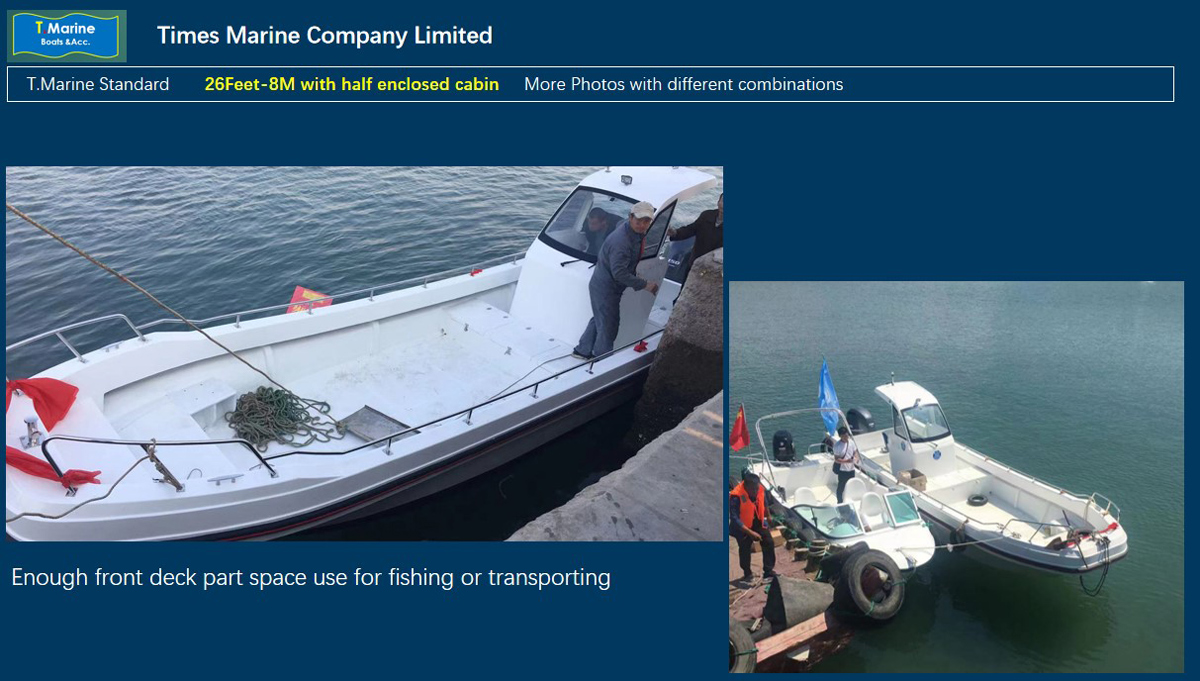

• Ultra-wide front deck: specially designed for sea fishing, can accommodate 4 people working at the same time, and also serves as a material transportation platform.

• Luxury layout for 9-10 people: 2.28-meter-wide deck, free switching between fishing, partying, and sightseeing, enjoy the fun of the group.




⚙️ Intelligent design, details win

• Full load displacement of 2.76 tons: high load capacity + stability, easy to cope with complex waters.

• Hidden storage system: multiple spaces in the cabin and under the seat, fishing gear and equipment are well organized.

  ⭐ Customization and delivery

• OEM/ODM service: hull painting, functional modules, and interior color matching are fully customized to create a brand-exclusive flagship.

• Global transportation: standardized anti-collision packaging, suitable for sea/land transportation, and the cost of bulk delivery is reduced by 20%.

Five major advantages

• Dual-engine sprint: double the power, speed and safety.

• Semi-enclosed cabin: all-weather sailing, full comfort.

• Foredeck overlord: fishing and transportation are both possible, and efficiency is doubled.

• Versatile customization: from function to aesthetics, your exclusive business card at sea.




26.5 FOOT SPORT FISHERMAN BOATS STANDARD AND OPTIONAL ACCESSORIES LISTS

Standard configuration of hull

Safety and structure

• Stainless steel U-bolt x 1

• Anti-collision bollard x 1 set

• Deck drain plug x 2 + circular drain plug x 2

• Tail drain port x 2 + live fish tank drain port x 4

• Rear guardrail x 1 set + control console side armrest x 2

Functional unit

• Cross cable bolt x 1

• Anchor wheel x1 + diving board x1 (including stainless steel bracket x2)

• 220L fuel tank x 1 set + stainless steel refueling port x 1

• Hand hole cover x 1 + lock buckle x 4 + hinge x 6

Cabin configuration

• Front windshield x 1 + side windshield x 2

• Windshield wiper x 1 set

• Driver's seat x 1 set

Standard electrical system

Navigation and signalling

• Mast light x 1 + Anchor light x 1

• Tail deck light x 1 + left and right turn signal light x 2

Operation and safety

• Six switches x1

• Electric horn x 1 + searchlight x 1

• Oil level sensor/instrument x 1

⚡ Optional upgrade configuration

High-end navigation and power

▸Navigation radar GPS chart (9 inch Garmin)

▸Yamaha engine: F150FETX / FL150FETX

▸Hydraulic system x 1 set

Comfort and functional expansion

▸Live fish tank x 1 (including drainage system)

▸Electric toilet x 1

▸Fishing net winch base x 1

26.5 FOOT FRIENDLY FISHERMAN BOAT OPERATION AND SAFETY

⚠️ Operational precautions

✨ Pre-sailing inspection

• Load control: Strictly follow the full load displacement of 2.76 tons (including 9-10 people + equipment). Overloading can easily cause hull imbalance or structural damage.

• Power system: Check the oil level, cooling system and propeller status of the dual outboard engines (2×115HP) to ensure synchronous operation.

• Safety equipment: Equipped with 10 life jackets, fire extinguishers, navigation lights, VHF communication equipment, and emergency lighting in the semi-enclosed cabin.

• Deck management: Fix the fishing gear and supplies on the front deck to prevent slipping during navigation.

⚙️ Specifications during navigation

• Power control: The dual outboard engines work together to avoid sudden acceleration or sharp turns to keep the hull balanced.

• Cabin use: Open flames are prohibited in the semi-enclosed cabin, and ventilation is maintained; the cabin door is closed in bad weather to prevent water ingress.

• Shallow water navigation: Use the wide deck stability to pass at low speed, monitor the water depth in real time, and prevent bottoming.

Emergency treatment

• Engine failure: switch to single-machine mode immediately, drop anchor and contact rescue.

• Hull leakage: activate bilge pump to drain, check sealing and go to the nearest shore for inspection.

Repair and maintenance guide

️ ✨Hull maintenance

• Rinse the hull with fresh water after each voyage to remove salt stains; wipe with neutral detergent, and prohibit the use of hard tools.

• Regularly check the hull surface (especially the front deck), and repair scratches in time (free service within the 5-year warranty period).

• Semi-enclosed cabin care: ventilate and prevent moisture after cleaning, and check the aging of the hatch door sealing strip.

⚙️ Power system maintenance

• Replace the oil of both engines synchronously every 100 hours, check the fuel filter and cooling water pipe.

• Drain the fuel for long-term out of use to prevent pipeline blockage; clean the entanglement of the propeller and apply anti-rust oil.

• Hydraulic system: Check the hydraulic oil level of the steering and support rods, and replace it once a year.

⭐ Storage and transportation

• Storage on shore: The hull is padded with soft brackets and covered to prevent UV rays; desiccant is placed in the semi-enclosed cabin to prevent mildew.

• Transportation packaging: Customized wooden boxes with dimensions of 8m×2.4m×1.5m, fixed with dual external engines and wrapped with shockproof materials.

✅ Safety rules

• Protection for all personnel: All personnel wear life jackets during navigation, and running on the deck or climbing on the cabin roof is prohibited.

• Environmental compliance: Waste oil is recycled and processed, and it is prohibited to discharge sewage or garbage into the sea.

• Regular inspection: The hull structure, engine system and electrical equipment are inspected by professional organizations every year.
