30 Feet Passenger Boat
Times Marine Boat
8903990090
——22-Seat Fiberglass Passenger Vessel for Sightseeing & Ferry Services
Target Markets :
Urban waterway sightseeing tours
Island-hopping ferry routes
Private resort shuttle services
Key Specifications
Passenger Capacity : 20-22 seats with ergonomic design for sightseeing or ferry operations.
Dimensions : 9.18m/30ft sleek fiberglass hull for stability and speed.
Engine Options :
Outboard/Inboard : 300-500HP recommended (single or twin engines).
Performance : 25-35 knots cruising speed (adjustable for ferry routes).
Customization : Optional extended canopy for UV protection and all-weather comfort.
Premium Features
Dual Functionality : Designed for sightseeing cruises and high-efficiency ferry services.
Safety : Reinforced railings, anti-slip deck, and integrated navigation lights.
Aesthetic : Matte-gloss finish with LED ambient lighting for night operations.
——22-Seat Fiberglass Passenger Vessel for Sightseeing & Ferry Services
Target Markets :
Urban waterway sightseeing tours
Island-hopping ferry routes
Private resort shuttle services
Key Specifications
Passenger Capacity : 20-22 seats with ergonomic design for sightseeing or ferry operations.
Dimensions : 9.18m/30ft sleek fiberglass hull for stability and speed.
Engine Options :
Outboard/Inboard : 300-500HP recommended (single or twin engines).
Performance : 25-35 knots cruising speed (adjustable for ferry routes).
Customization : Optional extended canopy for UV protection and all-weather comfort.
Premium Features
Dual Functionality : Designed for sightseeing cruises and high-efficiency ferry services.
Safety : Reinforced railings, anti-slip deck, and integrated navigation lights.
Aesthetic : Matte-gloss finish with LED ambient lighting for night operations.

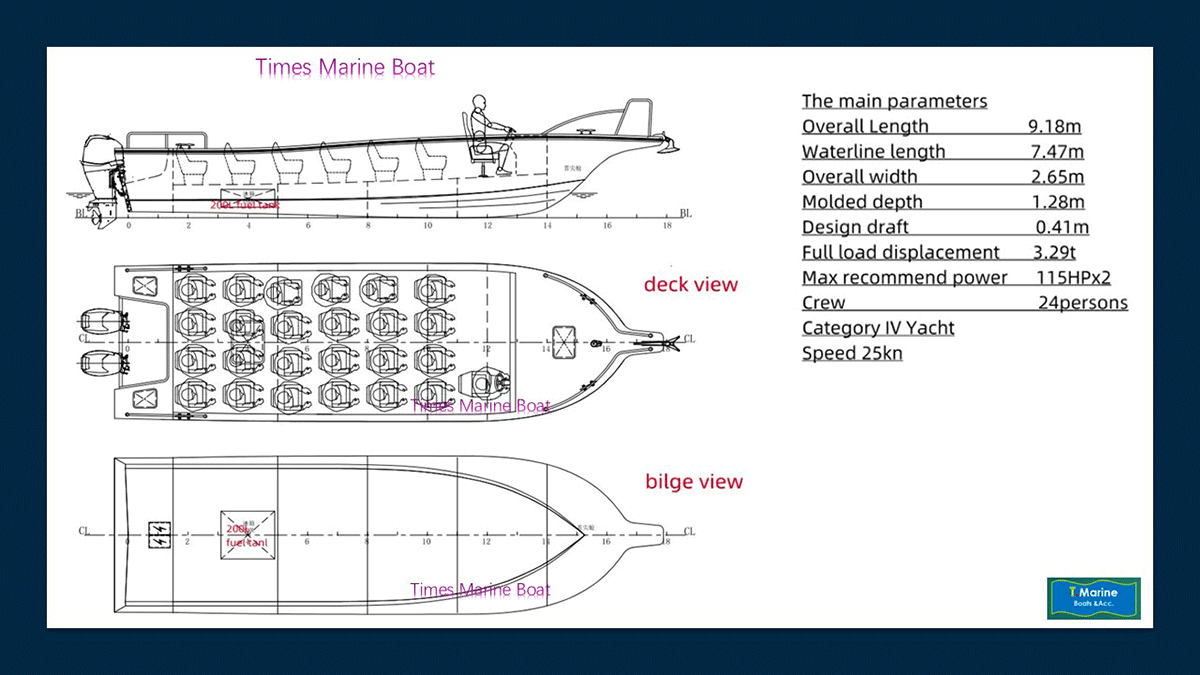

Technical Specs | Engineered for Impact
Where Data Meets Design
DIMENSIONAL BRILLIANCE
Length: 9.18m
Beam: 2.65m
Depth: 1.28m
Draft: 0.41m
PERFORMANCE UNLEASHED
1. SPEED: 30 KNOTS →(Vave-Piercing Profile)
2. POWER: 300-500HP →[Twin Engine Ready]
3. LOAD: 3230kg → (2x Compact Trucks)
ENGINEERED CHOICE
Powertrain Configurations
1.[Outboard]
Single: 300HP
Twin: 2x250HP (Blanced Thrust)
2.[Inboard]
300-500HP (Luxury Cruise)
KEY HIGHLIGHTS
Social boating: 18-20 seats
Global logistics: 40foot container for 1 boat.
Technical Specs | Engineered for Impact
Where Data Meets Design
DIMENSIONAL BRILLIANCE
Length: 9.18m
Beam: 2.65m
Depth: 1.28m
Draft: 0.41m
PERFORMANCE UNLEASHED
1. SPEED: 30 KNOTS →(Vave-Piercing Profile)
2. POWER: 300-500HP →[Twin Engine Ready]
3. LOAD: 3230kg → (2x Compact Trucks)
ENGINEERED CHOICE
Powertrain Configurations
1.[Outboard]
Single: 300HP
Twin: 2x250HP (Blanced Thrust)
2.[Inboard]
300-500HP (Luxury Cruise)
KEY HIGHLIGHTS
Social boating: 18-20 seats
Global logistics: 40foot container for 1 boat.
Modular Design × Elite Performance
Core Highlights
◼ Sleek Dimensions
9.18m Length | 2.65m Width | 1.28m Depth
◼ 22-Seat Luxury
Spacious fiberglass hull with ergonomic seating for 18-20 passengers.

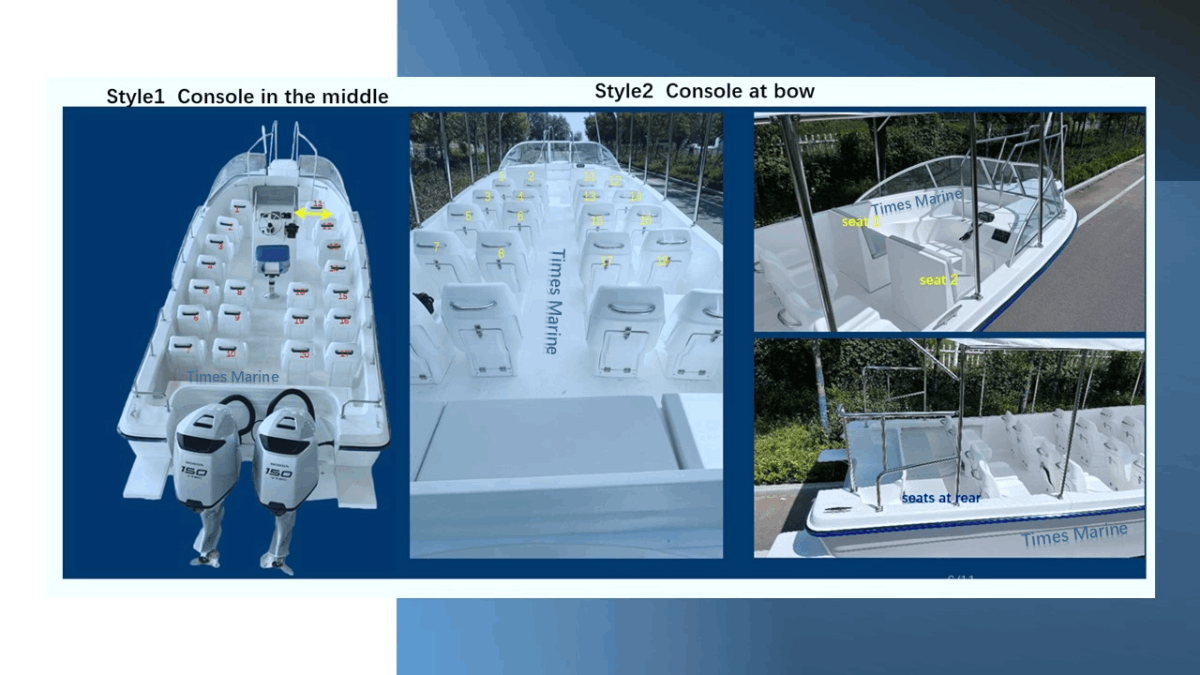

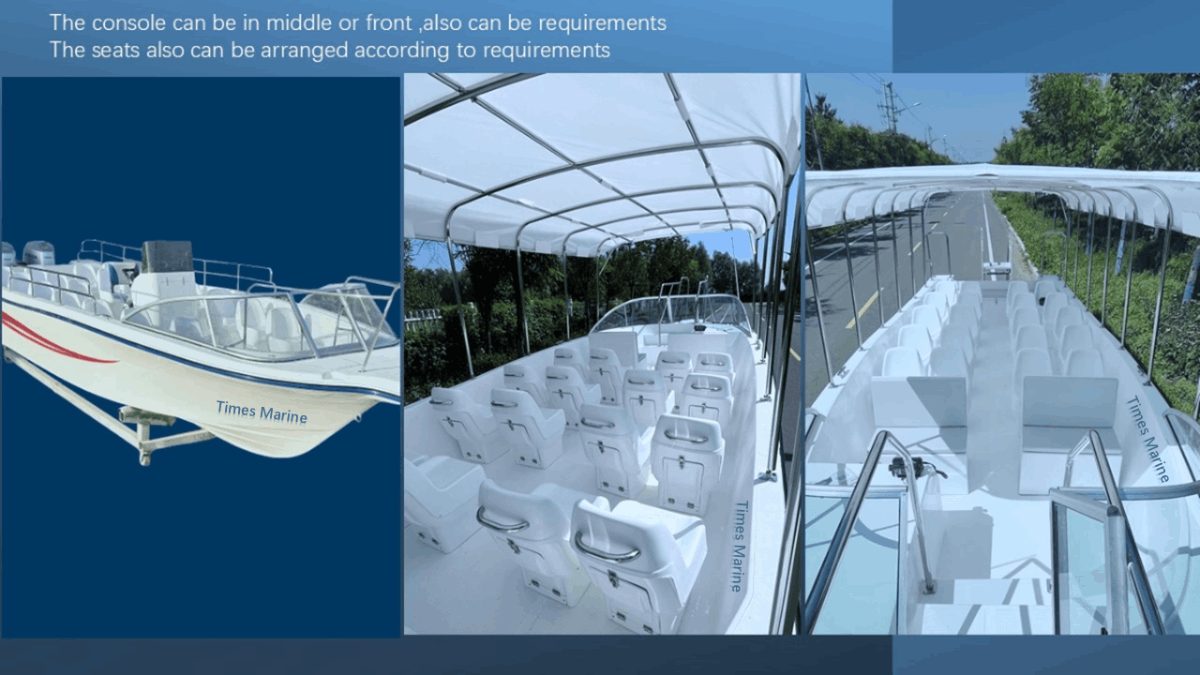

◼ Customizable Layout
Adjustable console placement (mid or forward) for tailored navigation
◼ Dynamic Power
Ouboard/Inboard engine options | 300-500HP range | Single or twin engines.
◼ Speed & Stability
30-knot cruising speed | Draft: 0.41m | Full displacement: 1460kg.
◼ All-Weather Ready
Optional eversized canopy for sun/rain protection
Modular Design × Elite Performance
Core Highlights
◼ Sleek Dimensions
9.18m Length | 2.65m Width | 1.28m Depth
◼ 22-Seat Luxury
Spacious fiberglass hull with ergonomic seating for 18-20 passengers.
◼ Customizable Layout
Adjustable console placement (mid or forward) for tailored navigation
◼ Dynamic Power
Ouboard/Inboard engine options | 300-500HP range | Single or twin engines.
◼ Speed & Stability
30-knot cruising speed | Draft: 0.41m | Full displacement: 1460kg.
◼ All-Weather Ready
Optional eversized canopy for sun/rain protection
STANDARD ACCESSORIES
STRUCTURAL ESSENTIALS
1.✅4x10'' Shofar Horns
2.✅Stainless Steel U-Bolt
3.✅Full Rubbing Strake
4.✅Bow/Stern Rail System
SAFETY & NAVIGATION
1.✅Driver Seat+Console
2.✅Front Windshield
3.✅4-Position Switch
4.✅Oil Level Sensor/Gauge
SEATING & COMFORT
1.✅20xPassenger Seats
2.✅Diving Board+SS Supports
3.✅Console Stainless Rails
FUEL & FLUID SYSTEMS
1.✅500L Fuel Tank
2.✅SS Water Outlets (x3 Stern, x2 Running)
3.✅SS Filling Port +Gas Vent
4.✅Battery Boxes(x2)
OPTIONAL UPGRADES
PREMIUM CANOPY PACKAGE
1.⭐Stainless Steel Frame
2.⭐UV-Resistant Top Cover
3.⭐Quick-Release Mounting
STANDARD ACCESSORIES
STRUCTURAL ESSENTIALS
1.✅4x10'' Shofar Horns
2.✅Stainless Steel U-Bolt
3.✅Full Rubbing Strake
4.✅Bow/Stern Rail System
SAFETY & NAVIGATION
1.✅Driver Seat+Console
2.✅Front Windshield
3.✅4-Position Switch
4.✅Oil Level Sensor/Gauge
SEATING & COMFORT
1.✅20xPassenger Seats
2.✅Diving Board+SS Supports
3.✅Console Stainless Rails
FUEL & FLUID SYSTEMS
1.✅500L Fuel Tank
2.✅SS Water Outlets (x3 Stern, x2 Running)
3.✅SS Filling Port +Gas Vent
4.✅Battery Boxes(x2)
OPTIONAL UPGRADES
PREMIUM CANOPY PACKAGE
1.⭐Stainless Steel Frame
2.⭐UV-Resistant Top Cover
3.⭐Quick-Release Mounting
Fiberglass hull come with 60 months guarantee, accessories 12months guarantee.
Normally we have repair kits for small repair. We are confidence we have no design and function quality problem. In case some problems you can not repair, please take pictures to us, we'd glad to guide you how to repair.
If the problem due to your incorrect operation, we also can help you repair, but this need you pay repair cost.
Also this warranty should base on the basic maintenance, such as customer need clear the boat by fresh water every time after using it, when you put the boat outside, you should use the boat cover to avoid any damage from sunshine.
Operation and safety
Professional operation: Small passenger ships should be operated by operators with professional qualifications and experience to ensure safe navigation.
Qualifications and Certifications: Make sure the operator holds a valid captain's or pilot's certificate and that the vessel has been inspected and registered by the appropriate authorities.
Safety facilities: This passenger ship is equipped with life-saving equipment, fire-fighting equipment, etc. to cope with possible emergencies.
Navigation precautions: When sailing, you should strictly abide by navigation rules, keep a safe distance from other ships, and avoid collisions. At the same time, you should pay attention to weather changes and avoid sailing in bad weather.
Passenger safety:
Ensure all passengers wear appropriate life-saving equipment such as life jackets.
Mark safe escape routes and the location of life-saving equipment in prominent locations.
Passengers are reminded not to crowd the side of the boat to avoid capsizing.
Passengers are prohibited from bringing dangerous items, flammable and explosive items on board.
Navigation safety:
Before setting sail, the various equipment and components of the passenger ship, such as engines, navigation equipment, electronic equipment, etc., should be checked to ensure that they are in good working condition.
Be familiar with maritime traffic rules and abide by relevant laws and regulations.
Avoid sailing in bad weather or other conditions that endanger navigation safety.
Comply with collision avoidance rules and special navigation regulations issued by local maritime authorities.
Small passenger boat operations:
Make sure all personnel are safely on board and seated before starting the engine.
Keep speed and direction stable when sailing and avoid sudden acceleration or deceleration.
When turning or approaching a dock, you should slow down in advance and observe your surroundings to avoid collision with other vessels or obstacles.
When stopping the boat, use the throttle and subtractor to adjust and keep enough distance to avoid collision with each other.
Emergency response:
Be equipped with relevant first aid equipment and fire-fighting equipment on board and be familiar with their use.
When encountering an emergency, take appropriate measures quickly, such as activating emergency rescue equipment and sending out a distress signal.
Conduct regular training for crew members to improve emergency response capabilities and operational skills.
maintain:
Regularly inspect and maintain vessel equipment and components to ensure they are in good working order.
Pay attention to the maintenance and storage of the boat to prevent it from the sun, rain, damage and theft.
3. Maintenance and maintenance
In order to ensure the long-term use and good performance of the ship, regular maintenance and upkeep should be carried out, including engine inspection, lubricating oil replacement, hull cleaning and anti-corrosion, etc. At the same time, care should also be taken to avoid prolonged exposure of the boat to sunlight or moisture to prevent damage to the hull.
In summary, when operating a small passenger ship, ferry or yacht that is 30 feet long and can accommodate 18-22 people, strict compliance with relevant regulations, laws and regulations is required to ensure the safety of passengers and the ship. At the same time, ships are regularly maintained and maintained to improve their service life and performance.
Fiberglass hull come with 60 months guarantee, accessories 12months guarantee.
Normally we have repair kits for small repair. We are confidence we have no design and function quality problem. In case some problems you can not repair, please take pictures to us, we'd glad to guide you how to repair.
If the problem due to your incorrect operation, we also can help you repair, but this need you pay repair cost.
Also this warranty should base on the basic maintenance, such as customer need clear the boat by fresh water every time after using it, when you put the boat outside, you should use the boat cover to avoid any damage from sunshine.
Operation and safety
Professional operation: Small passenger ships should be operated by operators with professional qualifications and experience to ensure safe navigation.
Qualifications and Certifications: Make sure the operator holds a valid captain's or pilot's certificate and that the vessel has been inspected and registered by the appropriate authorities.
Safety facilities: This passenger ship is equipped with life-saving equipment, fire-fighting equipment, etc. to cope with possible emergencies.
Navigation precautions: When sailing, you should strictly abide by navigation rules, keep a safe distance from other ships, and avoid collisions. At the same time, you should pay attention to weather changes and avoid sailing in bad weather.
Passenger safety:
Ensure all passengers wear appropriate life-saving equipment such as life jackets.
Mark safe escape routes and the location of life-saving equipment in prominent locations.
Passengers are reminded not to crowd the side of the boat to avoid capsizing.
Passengers are prohibited from bringing dangerous items, flammable and explosive items on board.
Navigation safety:
Before setting sail, the various equipment and components of the passenger ship, such as engines, navigation equipment, electronic equipment, etc., should be checked to ensure that they are in good working condition.
Be familiar with maritime traffic rules and abide by relevant laws and regulations.
Avoid sailing in bad weather or other conditions that endanger navigation safety.
Comply with collision avoidance rules and special navigation regulations issued by local maritime authorities.
Small passenger boat operations:
Make sure all personnel are safely on board and seated before starting the engine.
Keep speed and direction stable when sailing and avoid sudden acceleration or deceleration.
When turning or approaching a dock, you should slow down in advance and observe your surroundings to avoid collision with other vessels or obstacles.
When stopping the boat, use the throttle and subtractor to adjust and keep enough distance to avoid collision with each other.
Emergency response:
Be equipped with relevant first aid equipment and fire-fighting equipment on board and be familiar with their use.
When encountering an emergency, take appropriate measures quickly, such as activating emergency rescue equipment and sending out a distress signal.
Conduct regular training for crew members to improve emergency response capabilities and operational skills.
maintain:
Regularly inspect and maintain vessel equipment and components to ensure they are in good working order.
Pay attention to the maintenance and storage of the boat to prevent it from the sun, rain, damage and theft.
3. Maintenance and maintenance
In order to ensure the long-term use and good performance of the ship, regular maintenance and upkeep should be carried out, including engine inspection, lubricating oil replacement, hull cleaning and anti-corrosion, etc. At the same time, care should also be taken to avoid prolonged exposure of the boat to sunlight or moisture to prevent damage to the hull.
In summary, when operating a small passenger ship, ferry or yacht that is 30 feet long and can accommodate 18-22 people, strict compliance with relevant regulations, laws and regulations is required to ensure the safety of passengers and the ship. At the same time, ships are regularly maintained and maintained to improve their service life and performance.
