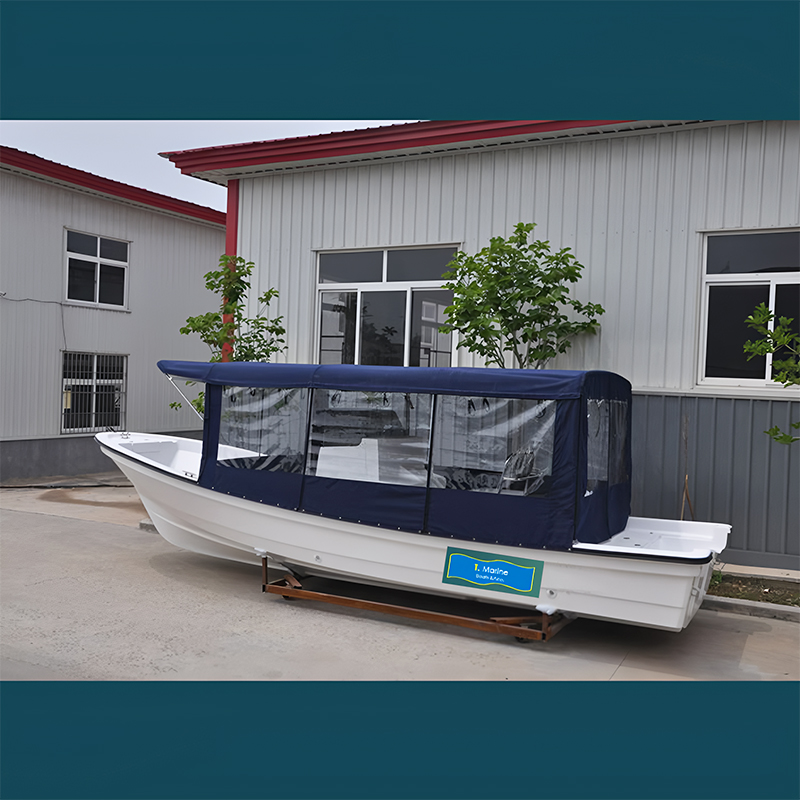

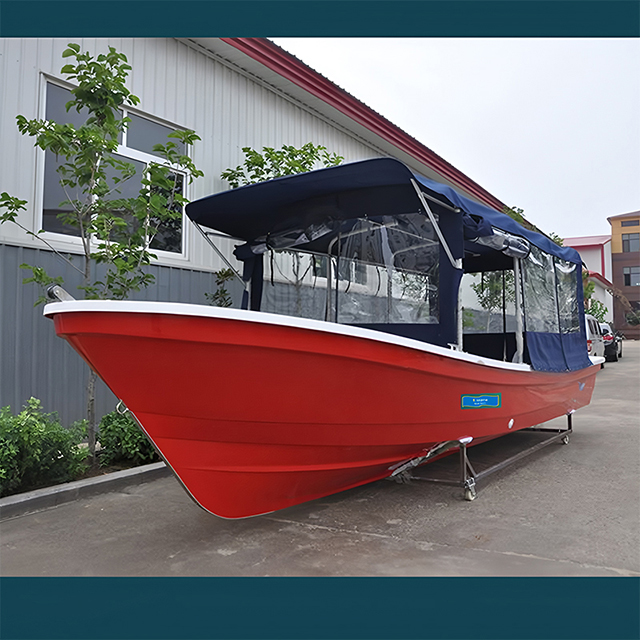

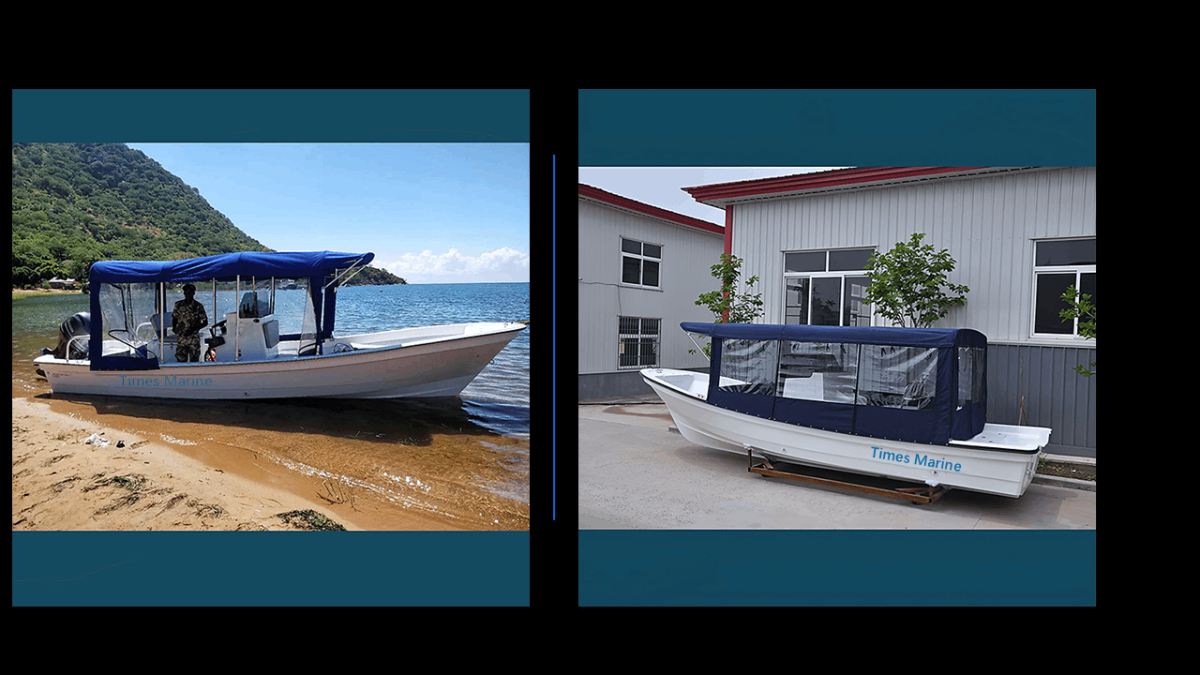

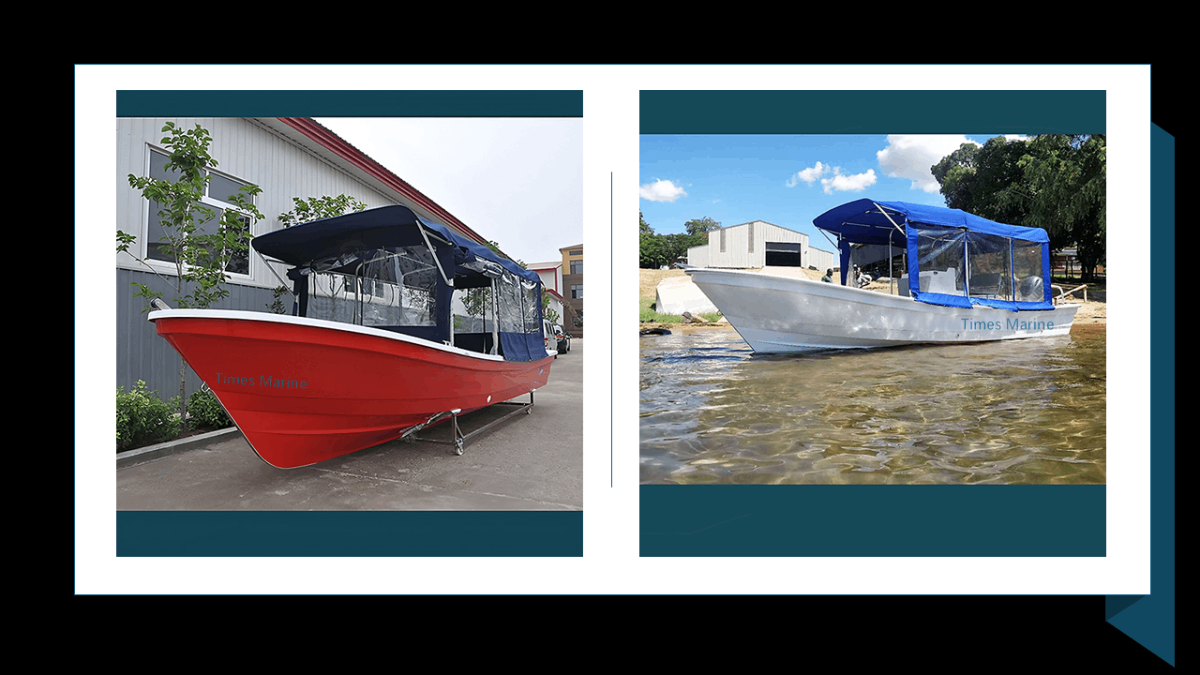

25FOOT FRP PANGA FERRY BOAT TECHNICAL PARAMETER

Basic hull parameters

• Total length: 7.6 meters

• Breadth: 2.3 meters

• Net weight: 950kg

• Max loading: 1240kg

⚙️ Power system

• Engine configuration: single or dual engines, flexible adaptation, fast response.

• Recommended horsepower: 70-90HP.

• Maximum horsepower: 115HP.

• Endurance: 150L fuel tank supports all-weather operation.

Transportation plan

• Container loading: 40-foot standard container can load 2 ships.

• Logistics adaptation: efficient global transportation, fast delivery.

Note: Please confirm with manufacturer, before installing the maxmimum horsepower engine.

25FOOT PANGA FERRY BOAT FEATURES

Core features

1. Military-grade hull technology

• Vacuum adsorption technology: no bubbles, no gaps in the hull, and 40% higher impact strength.

• Super corrosion resistance: no fear of seawater erosion, service life of more than 15 years.

• Lightweight design: net weight is only 950kg, load capacity is up to 1240kg.

2. Surging power and endurance

• 150L fuel tank: ultra-long endurance, worry-free exploration of the open sea.

• Flexible engine configuration: single/dual engine optional.

3. Multi-functional space layout

• 10-person super-large capacity: free layout of fishing spots, leisure seats or activity spaces.

• Modular expansion: reserved interface, suitable for live fish tanks, awnings, navigation systems.

Technical advantages

• Wind and wave resistance: wide body design+ deep V bottom, more stable navigation.

• Shallow water passage: optimized draft depth, unimpeded navigation in nearshore waters.

• Silent experience: low-noise engine compartment, immersive enjoyment of water time.

25FOOT PANGA PASSENGER BOATS STANDARD AND OPTIONAL ACCESSORIES LISTS

Standard accessories

1. Power and safety

150L fuel tank system: oil content meter, cable, liquid level sensor (200L fuel tank requires additional options)

Bilge Pump

Stainless Steel Cleats

Anchor Roller

2. Hull structure

Stainless steel frame + wooden seat: rust-proof treatment, waterproof coating on wooden seat surface

Full bottom foam filling

3. Comfort configuration

Back seat

Cushions for Seat

4. Appearance

Ashland Gel-coat GE1000s

✨ Optional accessories

1. Sunshade and protection

Three quarters of Full Canopy Cover

Canopy with Three quarters of Stainless Steel Cover Boat

2. Safety and convenience

Stainless Steel Hand Rail

Battery Box and Switch

Life Vest

3. Storage expansion

Stern Storage Box

4. Decoration and customization

Special Fiberglass Gel-coat Color

Special Seat Cushion Color

CNC Engraving EVA Deck

5. Power and transportation

Outboard Motor

Trailer

6. Advanced functions

Hydraulic Support

Customization instructions

1. Standard configuration meets basic needs: safety, power, and comfort in one step.

2. Optional accessories can be freely combined: flexible upgrade according to fishing, business, and leisure scenes.

3. OEM/ODM deep support:from hull color to functional modules, comprehensive personalization.

25FOOT FIBERGLASS HULL PANGA PASSENGER BOATS OPERATION AND SAFETY

⚠️ Operation precautions

1. Inspection before sailing

• Hull status: Check the fiberglass surface for cracks and joint sealing, and confirm that there is no water accumulation in the bilge.

• Power system: Fuel (150L tank), engine oil is sufficient, single/double engine operation is normal.

• Safety equipment: Equipped with 10 life jackets, fire extinguisher, life raft, GPS navigation, emergency signal equipment.

2. Navigation safety regulations

• Load control: Passengers ≤ 10 people, total load ≤ 1240kg, evenly distributed load.

• Weather warning: Stop sailing when wave height > 1.2 meters or wind speed > 20 knots.

• Night navigation: Turn on the navigation lights, and the deck lighting is fully covered to prevent people from falling.

3. Navigation operation guide

• Engine start: Preheat at low speed for 3-5 minutes, avoid rapid acceleration (especially for dual-engine configuration).

• Shallow water passage: Slow down when the water depth is less than 0.8 meters to prevent the propeller from touching the bottom.

• Steering skills: Wide-body hulls (2.3m) need to reserve a larger turning radius to avoid sharp turns.

4. Mooring and storage

• Anchoring: Choose double anchors according to the water depth to enhance stability.

• Hull protection: Install anti-collision fenders to avoid damage from dock collision.

• Long-term storage: Cover with dust and sunscreen cloth, drain the fuel system, and prevent rust on metal parts.

️Safety repair and maintenance

1. Regular maintenance plan

• Engine maintenance: Change the engine oil every 50 hours, and check the propeller and drive shaft every 100 hours.

• Hull inspection: Check the scratches on the fiberglass surface every month, and repair them in time to prevent leakage.

• Electrical system: Check the waterproofness and insulation performance of batteries and lines every quarter.

2. Deep cleaning and care

• Hull cleaning: rinse salt stains with fresh water, wax the fiberglass surface every six months to prevent UV aging.

• Deck maintenance: use special detergent to avoid chemical corrosion.

• Fuel tank management: drain and filter regularly to prevent fuel pollution.

3. Key protective measures

• Anti-corrosion treatment: apply anti-rust grease to metal parts (anchor chain, hinges) every quarter.

• Sealing upgrade: replace hatch and porthole sealing strips every year to ensure waterproofness.

• Structural inspection: professionally inspect the internal structure of the vacuum adsorption hull every 2 years.

4. Emergency response

• Hull damage: activate the bilge pump to drain water and dock safely nearby.

• Engine failure: turn off the power to anchor, start the backup power supply to send a distress signal.

• Fire risk: use a fire extinguisher to put out the initial fire and evacuate people to the life raft.
