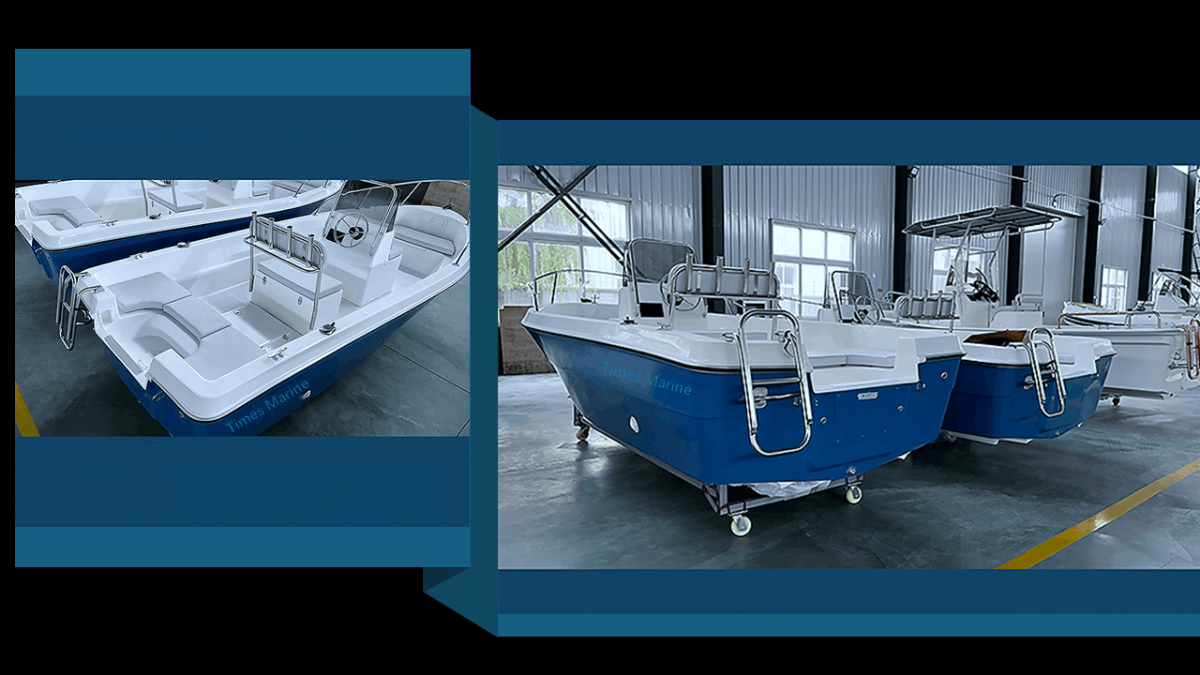

17 FOOT SMALL LAKE FISHING BOAT TECHNICAL SPECIFICATION

Basic parameters

▸Hull size: 5 meters in total length × 1.9 meters in width, compact and flexible, capable of handling shallow water and deep sea.

▸Crew capacity: can easily accommodate 6-8 people, fishing, leisure, and partying can be done on one boat.

Weight and load: net weight is only 370kg, maximum load is up to 1045kg, lightweight design and amazing performance.

▸Fuel tank configuration: standard 80-liter fuel tank, long-lasting endurance, support all-weather adventure.

Power performance

• Recommended power: suitable for 50-60HP single outboard engine, balancing speed and fuel economy.

• Precise matching: engine shaft length is 20 inches (508mm), power transmission is stable and efficient.

Transportation plan

• 20-Foot container: can safely load 2 ships, saving shipping costs.

• 40-Foot container: efficiently accommodate 4 ships, worry-free batch delivery.

Note: If you installing the maximum horse power engine, confirm with factory, very important for boat.

17 FOOT SMALL BOATS FISHING FEATURES

Core features

⚡ Lightweight innovation, upgraded strength

• Advanced fiberglass technology: factory technology optimization, hull weight reduced by 20%, corrosion resistance and impact resistance, 5-year warranty and word-of-mouth certification.

• Super large load capacity: maximum load 1045KG, 6-8 people + equipment can be easily accommodated, as stable as land.

Flexible power, long-lasting endurance

• Efficient power adaptation: 50-60HP single outboard (20-inch shaft length) is recommended, with a perfect balance between speed and fuel consumption.

• Deep V hull design: Break waves and sail steadily, conquer shallow water and deep sea.

️ Smart storage, space master

• Hidden storage throughout the ship: storage boxes are installed under the console, on the front deck, on the captain's chair, and on the stern chair, so that fishing gear and supplies are well organized.

• Spacious deck layout: 5m×1.9m space can be freely switched between fishing, leisure, and party modes.

Customization and Transportation

• Exclusive customization: Support OEM/ODM services, from hull color to functional modules, create your brand exclusive boat.

• Global logistics:

20-foot container for 2 boats, 40-foot container for 4 boats, transportation cost reduced by 30%.

Anti-collision reinforced packaging, full escort for sea and land transportation.

________________________________________

Three major advantages

1. Lightweight: 370kg net weight, load efficiency is leading the industry.

2. High quality assurance: FRP hull enjoys 5 years of worry-free guarantee.

3. Flexible customization: from color to configuration, meet individual needs.

17 FOOT FIBER BOAT STANDARD & OPTIONAL ACCESSORIES LISTS

✨ Standard accessories

(Factory-ready, ready to use)

1. Stainless steel safety components:Front & Back Stainless Steel Rail, Stainless Steel Cleats.

2. Multifunctional seat system: Stern Seat with Storage Box, Driver Seat with Cushion, Front Seat with Storage Box.

3. Core functional configuration:

▸Living Fish Box｜Centre Console with Cushion

▸Anchor Roller｜80L Fuel Tank System (with oil gauge and pipeline)

▸Automatic Bilge Pump

✨ Optional Accessories

(Upgrade on demand to unlock advanced experience)

1. Performance Enhancement

▸Steering System: Hydraulic Steering｜Mech Steering

▸Power Support: Battery Box & Switch｜Hydraulic Support

▸Power Expansion: Outboard Motor

2. Comfort and Protection

▸Shading System: Stainless Steel/Aluminum Alloy T-Top｜Foldable Canopy

▸Deck Upgrade: EVA Anti-slip Deck｜Boat Cover

3. Professional fishing kit

Stainless steel fishing pole holder (Fishing Pole Holder) | Navigation Light (Navigation Light)

4. Aesthetic customization

▸Personalized appearance: Special fiberglass gel coating (Special Gel-Coat) | Seat cushion color customization (Seat Cushion Color)

▸Safety standard: Life vest (Life Vest)

Transportation support

Special trailer (Trailer) | Container solution (20/40 feet box with 2/4)

17 FOOT SMALL FISHING BOATS OPERATION & SAFETY

Operation precautions

1. Pre-sailing inspection

▸Strictly control the load: the maximum load is 1045KG (including 6-8 people + equipment). Overloading can easily cause the hull to be unbalanced or structural damage.

▸Power adaptation: only use 50-60HP single outboard (20-inch shaft length). Over-powering may cause the hull to be overloaded.

▸Safety equipment: ensure that life jackets (6-8 pieces), fire extinguishers, navigation lights, and communication equipment are complete, and emergency anchors are installed in bad weather.

▸Fuel inspection: Check the oil level in the 80L fuel tank to ensure that there is no leakage in the pipeline.

2. Specifications during navigation

▸Steady speed navigation: avoid sharp turns, and use the deep V hull to break waves and deal with wind and waves.

▸Shallow water operation: pass through shallows at low speed to prevent the propeller from touching the bottom and being damaged.

▸Storage management: items in storage boxes such as the console and front deck need to be fixed to prevent tipping or sliding.

3. Emergency handling

▸Engine failure: drop anchor immediately and activate the backup communication equipment to contact rescue.

▸Hull damage: activate the bilge pump to drain water and go to the nearest shore for inspection and repair.

Repair and maintenance guide

️ 1. Hull maintenance

▸Rinse with fresh water after each use to remove salt/dirt, wipe with neutral detergent, and do not use hard brushes or corrosive solvents.

▸Regularly check the hull surface and repair scratches or cracks in time (free after-sales service within the 5-year warranty period).

▸Storage box care: ventilate and dry after cleaning to avoid long-term moisture causing mildew.

2. Power system maintenance

▸Replace the engine oil every 50 hours, check the cooling system, and drain the fuel for long-term non-use to prevent blockage.

▸Clean the propeller regularly and check the sealing of the shaft sleeve to prevent water leakage.

▸Pipeline inspection: Check the fuel pipe and hydraulic steering cable for aging or wear every quarter.

3. Storage and transportation

▸Storage on shore: The hull is padded with soft brackets, covered to prevent UV aging, and prevent deformation due to heavy ballast.

▸Container transport: 20-foot containers are packed with 2 pieces, 40-foot containers are packed with 4 pieces, anti-collision cotton is used as a separator + straps are used to reinforce the keel stress points.

✅ Safety rules

▸All personnel protection: Life jackets must be worn during navigation, and running on the deck or leaning on the bow is prohibited.

▸Environmental compliance: Waste oil and wastewater are handled in accordance with regulations, and the discharge of pollutants in the sea is prohibited.

▸Regular inspection: The hull structure, engine and safety equipment are inspected by professional organizations every year.
