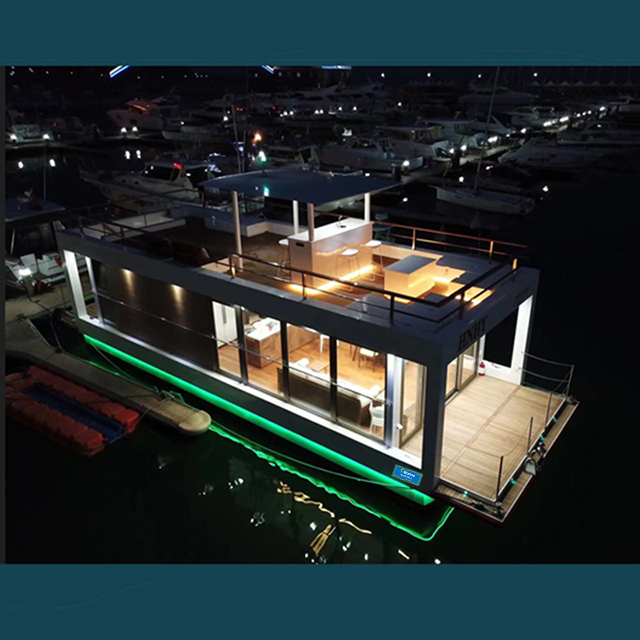

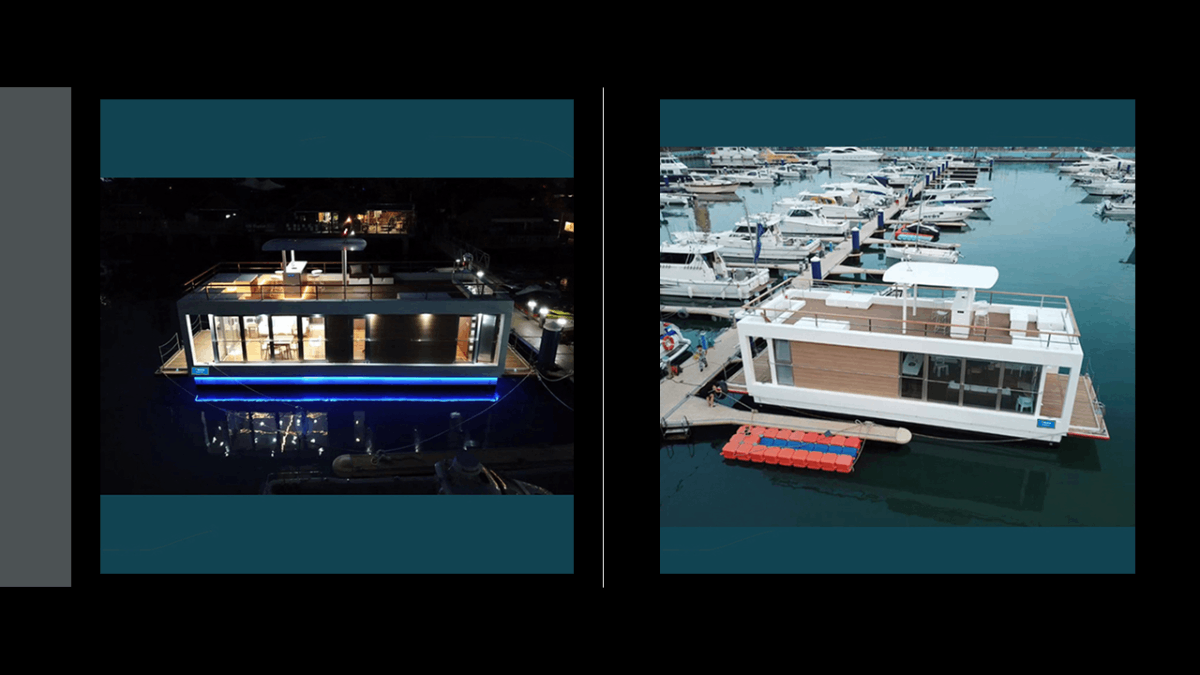

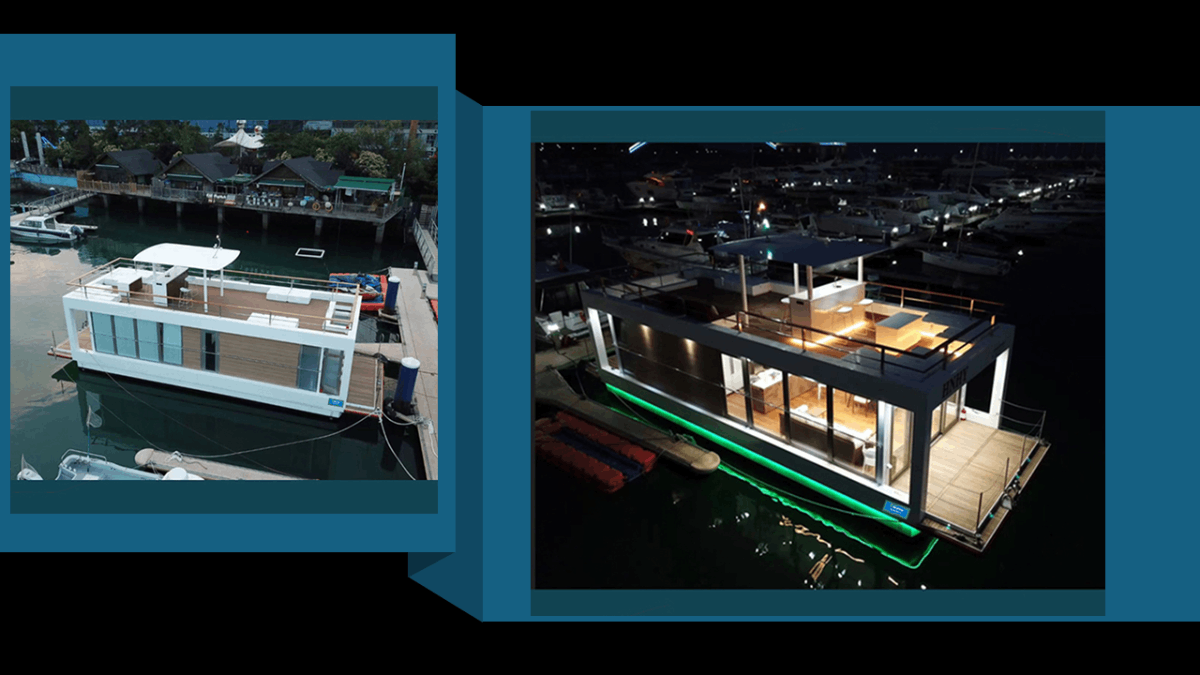

48 FOOT HOUSE BOAT TECHNICAL SPECIFICATION

Overall size

The maximum outer diameter is 14.6m in length, 4.5m in width, and 6.07m in height

Total displacement of 20 tons

Structural composition

1. Lower platform

Dimensions: 14.6m in length, 4.5m in width, and 3.05m in height

Framework design: Welding of steel structure box beams, segmented design of 12m/14.6m

2. Upper canopy

Dimensions: 4m in length, 3.1m in width, and 2.05m in height

Configuration: Stainless steel railing (with wooden handrails), electric sunshade

3. Fiberglass floating body

Outer diameter dimensions: 12m in length, 4.5m in width, and 1.3m in height

Double box structure: Single box size 12m × 1.5m × 0.45m × 1.3m

Connection method: Bolt fixed to steel frame, 6-compartment independent sealing design

Functional area configuration

1. Closed living area (40 square meters)

Size: 10m in length and 4m in width

bedroom:

Master bedroom: double bed x 1

Second bedroom: bunk bed x 1 (can accommodate 2-3 people)

Bathroom: Multi functional integrated bathroom (dry wet separation)

Social Zone:

Bar x 1, Kitchen Cabinet x 1

Salon area: Three person sofa x 1, dining table x 1, leisure chairs x 2

2. Open platform (46 square meters)

Size: Length 11.5m x Width 4m

to configure:

Sunshine sofa chair x 10, bar chair x 4, leisure chair x 2

Bar counter x 1, coffee table x 1, rubber simulated teak floor

Other technical parameters

Stair design: Anti slip steps (800mm wide), connecting the upper and lower floors

Lighting system: Full area LED lighting (indoor warm light/outdoor ambient light)

Pipeline design: concealed laying of water supply and drainage, power supply lines, clean and safe

Ancillary facilities:

2 water-cooled air conditioners (bedroom+salon area with independent temperature control)

Digital electrical control panel, shore power supply system

48 FOOT LARGE HOUSE BOAT FEATURES

1. Military grade safety structure

Steel reinforced iron armor: High strength steel structure frame (box girder welding+independent floating body of cabin), with 50% increase in impact resistance, stable displacement of 20 tons like land, and no fear of wind and waves.

Anti corrosion and shock resistance: Fiberglass composite coating+broken bridge aluminum doors and windows, double-layer tempered glass to isolate noise, temperature difference, and vibration, suitable for both winter and summer.

2. Double layered luxury living space

40 ㎡ enclosed living area:

• Two bedroom configuration: master bedroom double bed+second bedroom bunk bed, suitable for 6-8 people to stay.




• Star rated bathroom: Multi functional integrated bathroom (electric water supply/dry wet separation/makeup mirror cabinet), comparable to land-based hotels.




• Social core: U-shaped bar counter, three person sofa, 4K smart TV, salon area instantly transformed into a private cinema.




46 ㎡ open platform:

• Panoramic leisure: 10 person sunny sofa, simulated teak wood floor, electric sunshade, free switching between parties/stargazing/fishing.

3. Top tier building materials and craftsmanship

Land Home Texture: Imported Teak Wood Flooring+Anti slip Steps, Multi layer Plywood Customized Furniture, Sliding Doors Save Space.

Invisible technology: Concealed installation of water and electricity pipelines, digital control panel for one click management of air conditioning, lighting, and water supply, bidding farewell to messy cables.

4. All season intelligent system

Dual water-cooled air conditioning: independent temperature control for bedroom and salon area, reducing energy consumption by 30%.

Water and electricity worry free: the drinking water pressure pump can be turned on and heated immediately, the grey water tank is electronically controlled, and the shore power connection seamlessly switches.

Light and shadow art: Full range LED lighting (indoor warm light/outdoor ambient light), creating scenery day and night.

5. Detail oriented luxury

Smart home appliances: double door refrigerator, Hisense 4K TV, high fidelity sound system, perfect replica of land life.

Aesthetic craftsmanship: The interior and exterior walls are decorated with jewelry and paint, and the rubber simulated deck has a delicate touch and is resistant to dirt and wear.

48 FOOT CHINA HOUSE BOAT STANDARD AND OPTIONAL CONFIGURATIONS

 Standard configuration

1. Bedroom configuration

Double bedroom x 1 (1.5 meters x 2 meters double bed)

Double decker bedroom x 1 (bunk single bed)

2. Social area

Long sofa x 1+dining table x 1

Composite wood sliding inner door x 1 set

3. Safety design

Anti slip flooring (living area+stairs)

Stainless steel staircase handrail x 1+anti slip step

4. Basic household appliances

Double door refrigerator x 1

Color TV x 1+air conditioning x 2

Electric water heater x 1+bathroom shower x 1

Sanitary facilities

Toilet and accessories x 1 (dry wet separation design)

600L drinking water tank (including pressure pump)

5. Core control

Digital control panel x 1+display screen x 1

Circuit breaker x 1+sensor x 1

6. Lighting and power supply

LED Full Area Lighting (Indoor+Outdoor Spotlight)

16A power socket x multiple sets+charger x 1

⚡  Optional upgrade configuration

1. Promote power

60 horsepower external engine x 2 (with 300L fuel tank)

2. Anchor safety

Galvanized steel anchor chain x 70 meters+navigation lights/anchor lights x 1 set

3. Navigation assistance

Depth sounder x 1+speedometer x 1

4. Power enhancement

5000W inverter x 1 (supporting high-power devices)

6KW water-cooled generator x 1 (backup power supply)

5. Battery management

24V/12V battery pack x multiple sets

24V/12V dedicated charger x 1 set

6. High end auxiliary equipment

Silent upgrade: double-layer soundproof glass (replacing standard windows)

Intelligent Expansion: Whole ship intelligent home control system (voice controlled lighting, air conditioning)

48 FOOT HOUSE BOAT CHINA OPERATION AND SAFETY

Operation precautions

1. Navigation and Load Management

• Strict load limit: The total load shall not exceed the design load (refer to the technical manual), and the materials shall be evenly distributed to avoid center of gravity deviation.

• Floating body inspection: Before each voyage, confirm the sealing of the fiberglass floating body in cabin 6, and ensure that there is no water leakage or structural damage.

• Severe weather ban: Navigation is prohibited in severe weather. Close the aluminum doors and windows of the bridge and secure the sunshade.

2. Equipment and system operation

• Electrical system: Before starting, check the status of the digital control panel and shore power interface to avoid short circuits in the circuit.

• Turn off non essential appliances (such as air conditioning and lighting) when leaving the ship to prevent excessive battery discharge.

• Water cooled air conditioning: The cooling temperature in summer is ≥ 22 ℃, and the heating temperature in winter is ≤ 25 ℃, to avoid excessive temperature difference between the inside and outside, which may cause condensation water to accumulate.

• Water supply system: Regularly clean the filter screen of the drinking water tank, and manually test the electronic control valve of the grey water tank once a month.

3. Parking and fixing

• Mooring standard: Choose an area with a water depth of ≥ 3 meters to anchor, and the length of the anchor chain should be ≥ 3 times the water depth to avoid touching the bottom and damaging the floating body.

• Shore power connection: Use waterproof sockets to connect to shore power, and confirm voltage stability before connection.

4. Emergency measures

• Water treatment: Immediately activate the bilge drainage pump and investigate the leakage points of floating bodies or pipelines.

• Fire emergency: Equipped with 2 dry powder fire extinguishers (stored in the salon area and platform bar counter), and regularly check the pressure value.

Safety Maintenance Standards

1. Daily maintenance

• Ship cleaning: Clean the fiberglass surface and teak floor with fresh water every week to remove salt and dirt.

• Steel structure inspection: Check the welding points and bolt connections for rust every month and apply anti-corrosion paint.

• Door and window maintenance: lubricate the bridge cut aluminum door and window sliding rails every quarter, and test the sensitivity of electric louver curtains for opening and closing.

2. Regular maintenance (every 6 months)

• Floating system: Check the sealing of 6 independent floating cabins and repair minor cracks on the surface of fiberglass.

• Water and electricity pipelines: Test the concealed pipelines for leaks, replace aging wires or connectors.

• Air conditioning maintenance: Clean the filter screen of the water-cooled unit, check the refrigerant pressure, and replenish antifreeze (in winter).

3. Seasonal deep maintenance

• Winter protection:

  Drain the grey water tank and drinking water tank to prevent freezing and cracking.

  Disconnect the battery and store it at a constant temperature, covering the hull to prevent dust and snow.




• Summer protection:

  The deck rubber floor is coated with UV protective agent to prevent aging and fading.

  Check the UV resistance of the sunshade fabric and replace it if necessary.

4. Special maintenance of critical systems

• Digital control panel: calibrated sensors and updated system software by professional technicians every year.

• Sanitary system: Clean the drainage pipes every 3 months to prevent blockages; Check the heating element of the electric water heater.

• Lighting system: Replace damaged LED beads and test the sealing of outdoor waterproof lights
