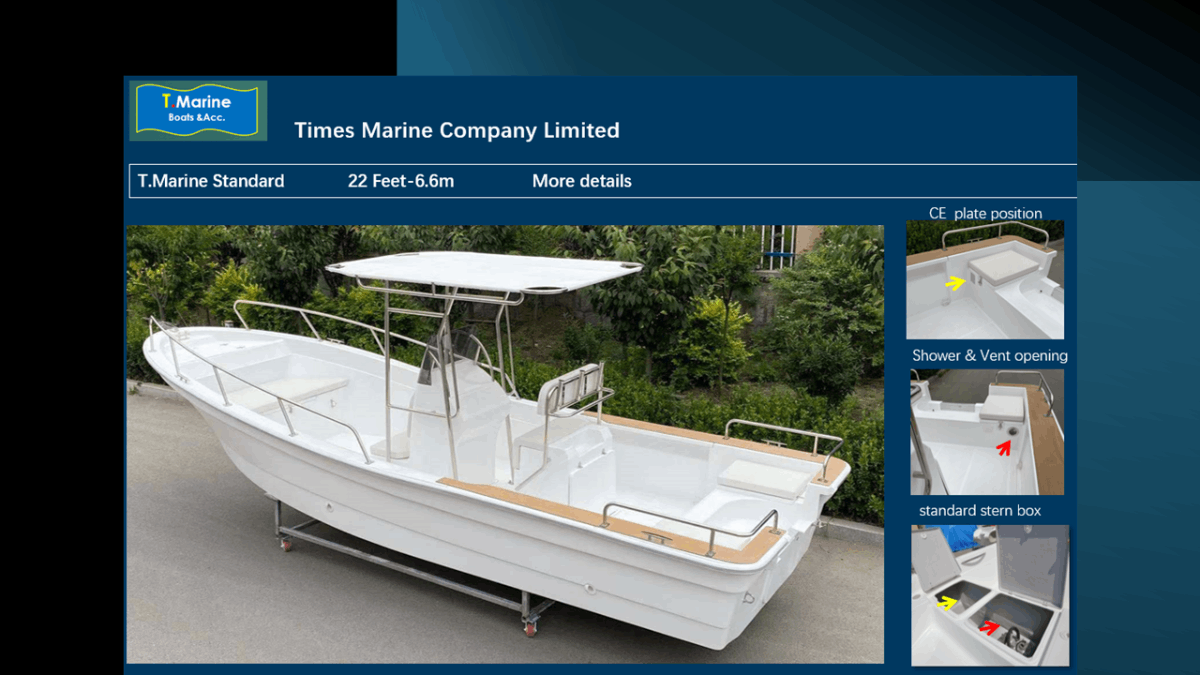

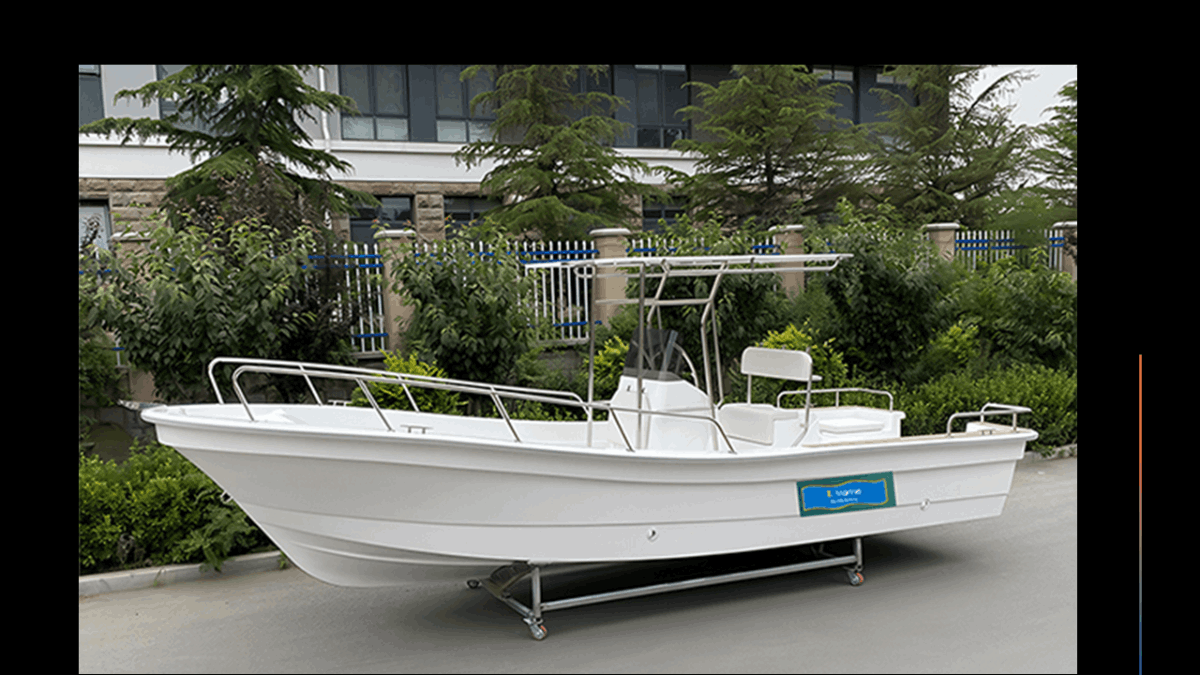

22 FOOT MARINE PANGA BOAT TECHNICAL PARAMETER

Basic specifications

• Total length : 6.6m / 22ft

• Total width : 2.27m / 7.5ft

• Maximum load: 760KG

• Weight : 740KG

• Fuel tank capacity :150 litres

• Tank capacity : 80 litres

• Life fishing box : 80 litres

• The number of crew members is : 7

Adaptation and extension

• Power configuration : supports a single external engine (70-90HP recommended), which can be expanded to a high performance engine of 115HP.

• Transportation efficiency : A single 40-foot container can be loaded on two ships, making global transportation convenient.




Note: If you installing the maximum hp engine, please confirm with factory, very important for boat.

22 FOOT FIBERGLASS PANGA BOAT FEATURES

Core features at a glance

1. Double hull design · No fear of wind and waves

• Deep sea and shallow water dual mode: unique double hull + deep V fluid structure,

  stable as a mountain in huge wave sea, flexible in shallow water.

• Anti-wave high bow: traditional PANGA high bow design reduces surge impact,

  provides buoyancy for fishing nets, and doubles safety.

• Longitudinal and transverse keel reinforcement: The longitudinal and transverse keels of the bottom of the ship are connected,

  which increases stability by 50% and makes sailing more solid and durable.

️

2. Lightweight and durable · FRP innovation

• Military-grade material: 8-14mm vacuum adsorption FRP, tensile strength +30%,

  corrosion resistance and impact resistance, 5-year warranty worry-free.

• PVC CORE deck: replaces traditional wooden boards, waterproof and moisture-proof,

  lightweight design with stronger load-bearing capacity, and the deck space is neat and tidy without clutter.

3. Professional fishing · All-round leisure

• Large storage system: 150L fuel tank + 80L water tank + 80L living fishing box, to meet all-weather operation needs.

• Spacious space for 7 people: fishing, partying, sightseeing, snorkeling can be done on one boat, and the deck layout can be switched freely.

• Free power adaptation: 70-90HP single outboard is recommended,

  supporting 115HP violent power (shaft length 20/25 feet), with both speed and endurance.

4. Flexible customization · Global direct access

• Exclusive customization service: hull color and functional modules are adjusted as needed to create your personalized sailing tool.

• Efficient transportation plan: 40-foot container can load 2 ships, global logistics costs are reduced by 50%, and delivery is one step faster.

⚡ Why choose Panga?

✅ One boat for multiple uses: seamless switching between fishing, leisure and adventure, 7 people share the time at sea.

✅ As stable as land: Double hull + deep V design, it can be as stable as walking on flat ground even in bumpy seas.

✅ Lifelong partner: 5-year warranty for fiberglass, durability can stand the test of time.

Applicable scenarios

✅ Fishing experts Leisure masters Adventure players.

✅ Deep-sea fishing Water party Shallow exploration.

✅ Fishing net operation Family sightseeing Snorkeling and diving.

✅ All-weather endurance Comfortable lounge chair Speedy surfing.

22 FOOT ADVANCED PANGA BOAT STANDARD AND OPTIONAL ACCESSORIES LISTS

Standard configuration list

(factory-ready, full coverage of basic functions)

1. Anchor system: anchor roller + anchor storage box, fast retraction and safe mooring.

2. Multifunctional seats: front/middle/rear seats are all equipped with storage boxes,

and the 7-person cabin space can be flexibly used.

3. Control panel: central console (with cushions) + driver storage seat, comfortable and convenient sailing.

4. Stainless steel accessories: marine mooring piles (Cleats), durable and rust-proof.

5. Power support: 150-liter fuel tank (including fuel gauge and pipeline), worry-free endurance.

6. Live fish/storage box: standard 80-liter living fishing box, dual-purpose for freshness preservation and storage.

7. Drainage guarantee: automatic bilge pump, emergency drainage to prevent shipwreck.

Optional upgrade accessories

(Customized on demand, unlock advanced experience)

1. Structural enhancement : Front and rear stainless steel guardrails ▪ Stainless steel fishing rod holder

▪ Hydraulic steering system ▪ Aluminum alloy/stainless steel T-top frame

2. Function expansion : 80-liter water tank ▪ Battery box + switch ▪ Hydraulic support rod ▪ Portable toilet

▪ Stainless steel ladder ▪ Outboard engine (optional)

3. Comfort and convenience : ¾ hull large awning ▪ Full-cover canopy (stainless steel frame)

▪ Folding awning ▪ Custom EVA CNC engraved deck

4. Protection and safety : Full boat protective cover ▪ Life jacket ▪ Trailer (for transportation only)

5. Aesthetic customization : Special fiberglass gel coating color ▪ Seat cushion color customization

Core selling point

✅ Standard combat capability: From anchors to drainage systems, basic functions are in place and ready to use out of the box.

✅ Modular options: 21 accessories can be freely combined to cover all fishing, leisure and adventure needs.

✅ Detailed customization: From hull color to deck texture, it shows your personal taste.

22 FOOT PANGA BOAT OPERATION AND SAFETY

⚠️ Operational precautions

⚙️Pre-sailing inspection

• Load control: Strictly follow the maximum load of 760KG (including 7 people + equipment),

  to avoid overloading and causing the hull to be unbalanced.

• Power matching: Recommended single outboard engine 70-90HP, if 115HP is selected,

  ensure that the engine shaft length (20/25 feet) is compatible with the hull.

• Oil and water reserves: Check the fuel level of the 150L fuel tank and the cleanliness of the 80L water tank,

  and ensure that the fishing box is fixed to prevent tipping.

• Safety equipment: Required life jackets (7 pieces), fire extinguishers, navigation lights,

  communication equipment, and emergency anchors in bad weather.

✅ Specifications during navigation

• Steady speed navigation: Avoid sharp turns in deep sea areas.

  Although the double hull structure is stable, you still need to be vigilant against large waves impacting the high bow.

• Shallow water operation: Pass through shallows at low speed to prevent the propeller from touching the bottom and being damaged;

  use the flexibility of the double hull to adjust the draft depth.

• Fishing net operation: The high bow design can assist buoyancy, but the fishing net must be fixed to avoid entanglement with the hull or engine.

Emergency treatment

• Avoid danger in waves: Face the big waves horizontally and use the deep V hull to slow down and sail with wave-breaking stability.

• Fault response: When the engine is turned off, immediately activate the backup power or drop anchor, contact rescue and display a distress signal.

• Operation precautions

• Fault response: When the engine is turned off, immediately enable the backup power or anchor, contact rescue and display a distress signal.

Maintenance and repair safety guide

️Hull maintenance

• Rinse the hull with fresh water every month to avoid salt corrosion; use neutral detergent,

  and do not use hard brushes or strong acids and alkalis.

• Regularly check the 8-14mm fiberglass layer, and repair scratches or cracks in time (contact the manufacturer within the 5-year warranty period).

• Deck care: Avoid heavy objects hitting the PVC CORE deck, and ventilate it after cleaning to prevent mildew.

• Keel inspection: Check the longitudinal and transverse keel connections every quarter to ensure that there is no looseness or rust.

⚙️ Power system maintenance

• Replace the engine oil every 50 hours and check the cooling system; 115HP high-power models need to shorten the maintenance cycle.

• Drain the fuel before long-term outage to prevent pipe blockage.

• Propeller and shaft system: regularly remove entanglements and check the sealing of the shaft sleeve to prevent water leakage.

Storage and transportation

• Storage on shore: Soft brackets are placed on the hull to prevent local compression and deformation of the fiberglass; cover to prevent UV aging.

• Container transportation: When the two boats are fixed, they are separated by anti-collision cotton,

  and the longitudinal and transverse keel stress points are reinforced with straps.

✅ Safety rules

Crew safety: All crew members wear life jackets during navigation, and it is forbidden to run on the deck or lean on the bow railing.

Environmental compliance: Fuel and wastewater are handled according to environmental protection standards,

and pollutants are prohibited from being discharged in the sea.

Regular professional inspections: The hull structure, power system and safety equipment are fully inspected by authorized agencies every year.

Safety is the bottom line of navigation, and maintenance is the guarantee of life!

Times Marine 6.6-meter Panga boat-professionally guards your every wave-breaking journey!
