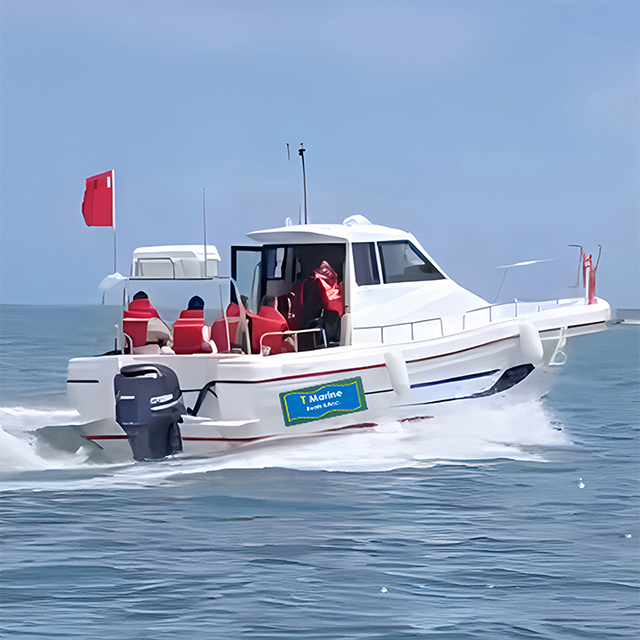

34FOOT FISHING BOATS TECHNICAL PARAMETER

Basic Specifications

▸ Full Length : 10.2m

▸ Full Width : 2.73m

▸ Moulded Depth : 0.95m

▸ Draft : 0.55m

CAPACITY & WEIGHT

▸ Max Persons : 10

▸ Weight : 2300 kg

▸ Full Displacement : 4.7t

POWERFUL & SPEED

▸ Engine Configuration : 1 or 2 engines

▸ Max Recommended HP : 300-400HP

▸ Speed : 26 knots

ADDITIONAL INFO

▸ 40ft Flat Rack Container

▸ Navigation Area : ≤10 nautical miles from shore

Note : Before installing maximum HP engines, please confirm with manufacturer.

FEATURES FOR 34FOOT FISHING BOAT WITH ENGINE

Six core features

1. All-weather safety fortress

The fully enclosed cabin is equipped with reinforced fiberglass bulkheads to withstand level 4 wind and waves, and the cabin constant temperature system (optional) allows 10 passengers to be fearless of wind, rain, cold and heat. The streamlined hull is 2.73 meters wide, with a full load displacement of 4.7 tons, and the bumpy feeling is reduced by 50%.

2. Dual-mode power heart

300-400 horsepower engines can be freely matched-the built-in engine is stealth and noise reduction, and the external engine is easy to maintain; the single engine has a maximum speed of 26 knots, and the dual engines have doubled power + fault redundancy. The 500-liter fuel tank has a cruising range of more than 300 nautical miles. From offshore fishing to cross-island transportation, one tank of fuel can reach the destination directly.

3. The king of lightweight load-carrying

The vacuum infusion fiberglass process, the hull weighs only 2300kg, but the strength is increased by 35%! 3230kg large load capacity, can accommodate 10-person team equipment + 1 ton of catch, deck anti-slip pattern design, seamless switching between fishing, transportation, and party scenes.

4. Space Magician

Front deck: invisible fishing rod holder hole + live fish tank pre-installed interface, professional sea fishing in one step.

Rear deck: open flat space, instantly transformed into a barbecue party area or material stacking platform.

Inside the cabin: customizable leather seats, folding tables, audio-visual systems, leisure and entertainment are not compromised.

5. Global delivery without threshold

The whole ship is suitable for 40-foot flat rack containers, single box single ship standardized packaging, sea transportation costs directly reduced by 30%, from Chinese factories to global ports, 30 days to port ready to use, unpacking ready to sail.

6. Deep customization freedom

Support OEM/ODM full process customization-from engine brand (Yamaha/Mercury), hydraulic steering system, to cabin wood grain decorative panels, sonar detection modules, your needs are our design drawings.

STANDARD & OPTIONAL ACCESSORIES FOR 34FOOT CABIN FISHING BOAT

⚓ Standard configuration

⚙️ Hull safety and structure

• Safety warning: anti-collision fender × 1 set

• Anchoring system: stainless steel U-bolt × 1 + anchor frame × 1 + cross mooring bolt × 1

• Drainage protection: stainless steel drain × 3 + round drain plug × 2 + live fish box drain × 4

• Hull reinforcement: diving board × 1 (including stainless steel bracket × 2) + bow/stern guardrail × 1 set

⚡ Power and control

• Fuel system: 500L fuel tank × 1 + stainless steel refueling port × 1 + oil level sensor × 1

• Driving assistance: driving seat × 1 + control panel × 1 set + wiper × 1 set

• Hatch door design: sliding hatch × 1 + stainless steel hatch door lock × 6

⭐ Cabin facilities

• Fully enclosed cabin: padded sleeping cabin × 1 + skylight × 2 (sleeping cabin/main cabin)

• Ventilation and lighting: front windshield × 1 + side windshield × 2 + Console side armrest × 2

• Convenience components: battery box × 2 + vent × 1 + hand hole cover × 2

⚡ Optional upgrade configuration

⚙️Professional navigation and operation

• Radar navigation: 9-inch Garmin chartplotter (GPS + radar integration)

• Hydraulic system: precise steering control, suitable for high-intensity operations

• Electric anchor machine: 12V automatic anchoring, saving 80% effort

• Yamaha engine: F150FETX / FL150FETX high-performance power

⭐ Fishing enhancement kit

• Stainless steel fishing rod rack × 2 + 12-station fishing platform

• Boat anti-fouling paint: prevent shellfish attachment, extend the life of the hull

• Live fish storage: rear deck storage compartment × 1 (waterproof design)

✨Comfort and convenience

• Electric toilet: one-button flushing, hygienic upgrade

• Boarding ladder × 1 (foldable non-slip design)

• VHF radio station: emergency communication guarantee at sea

• VIS collision avoidance system: intelligent warning collision risk

34FOOT FIBERGLASS BOAT FOR FISHING WITH OPERATION & SAFETY

⚓ Operational rules: Safety first

1. Loading and balance

   ▸Overloading is strictly prohibited: maximum load is 3230kg, crew ≤10 people, materials are evenly distributed, and the center of gravity shift may cause the risk of capsizing.

   ▸Engine matching: strictly use 300-400 horsepower engines (internal/external), dual engines need to be loaded synchronously, and switch to backup power immediately when a single engine fails.




2. Control of the navigation environment

   ▸Weather warning: It is prohibited to sail when the wave height is >1.2 meters or the wind force is ≥6, and the fully enclosed cabin door must be sealed throughout the journey.

   ▸Water avoidance: avoid shoals and reefs, and internal engine boats need to be vigilant about propeller bottoming damage.




3.  Speed and emergency

   ▸Speed limit classification: narrow waterways ≤15 knots, open waters full load speed ≤26 knots, and emergency braking distance in case of emergencies must be reserved 50 meters.

   ▸Emergency equipment: 10 life jackets, 2 fire extinguishers, and 500L fuel tank self-closing switch must be checked daily.

Maintenance: The key to extending life

1. Daily maintenance

   ▸Hull cleaning: rinse the FRP surface with fresh water after each voyage to remove salt stains and biological attachments, and prevent deck drain holes from clogging.

   ▸Engine maintenance: change the engine oil every 100 hours, check the cooling system, and clean the entanglement of the outboard engine propeller.

   ▸Electrical inspection: test the cabin lighting, navigation lights, searchlights, and lubricate the battery box waterproof seal once a month.




2. Deep maintenance cycle

   ▸Every 6 months: check the cracks and seam strips of the FRP hull, repair minor damage; test the anti-rust coating on the inner wall of the 500L fuel tank.

   ▸Once a year: apply anti-fouling paint to the bottom of the ship to prevent barnacle parasitism; replace the oil of the hydraulic system (if optional) and test the sealing of the pipeline.




3. Seasonal protection

     ▸Winter suspension: drain the fuel pipeline, disconnect the battery and store it at a constant temperature; the soft cushions in the cabin need to be treated with moisture and mildew.

     ▸Rainy season warning: check the sealing strips of the fully enclosed cabin doors and windows to prevent water seepage and circuit short circuit.

⚠️ Safety red line and warranty are linked

• 5-year warranty effective conditions: complete maintenance records must be provided. Unauthorized modification of the engine, overloading or removal of sealing parts will result in the warranty being invalid.

• Emergency fault handling: immediately activate the manual/automatic drainage pump when the cabin is flooded; switch to backup power or release the emergency anchor when the engine is out of control.
