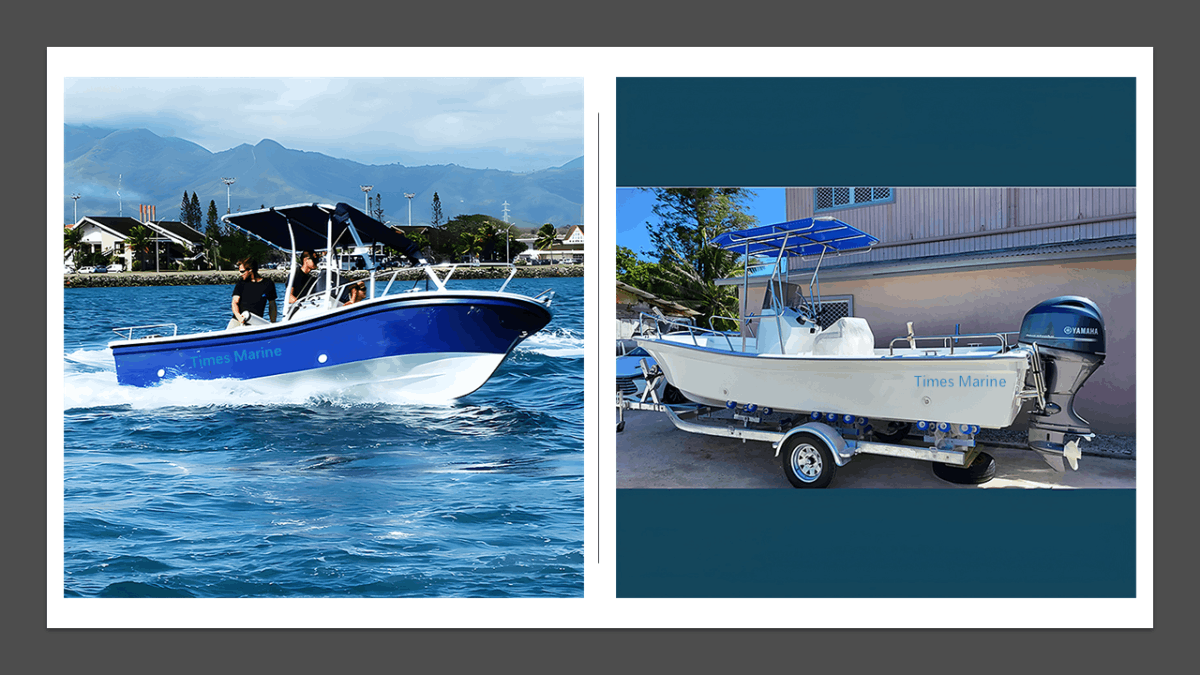

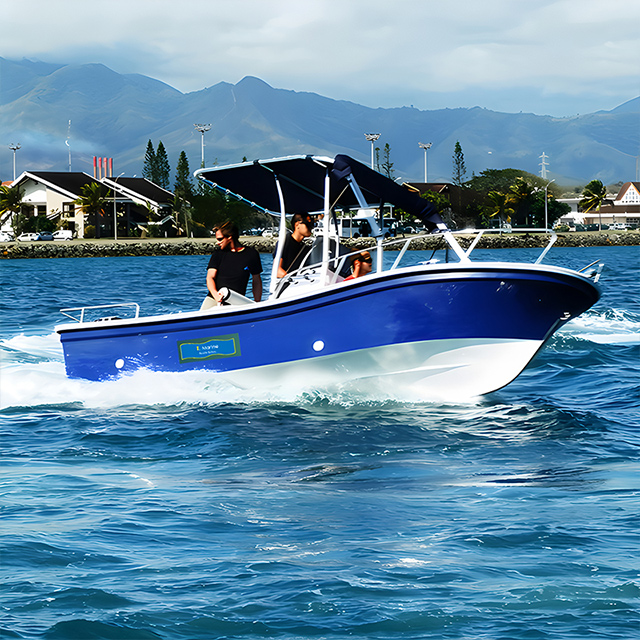

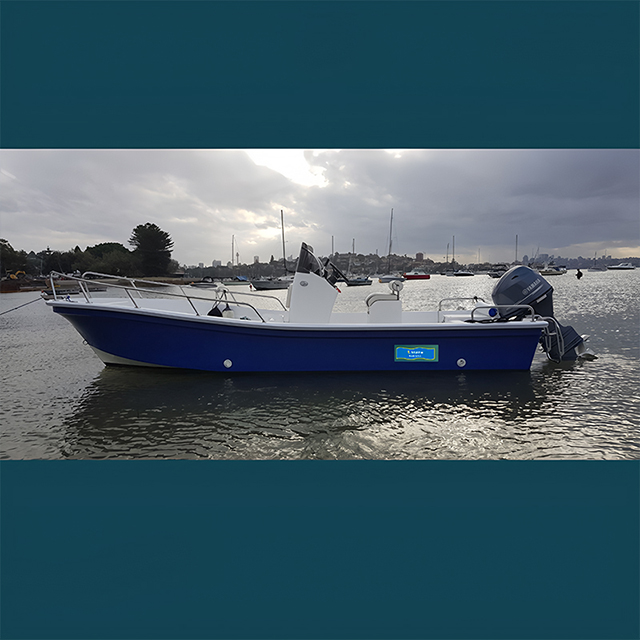

19 FOOT PANGAN HULL FISHING BOATS TECHNICAL PARAMETER

Boat specifications

Total length : 5.8m/19ft

Total width : 1.98m/6.5ft

Maximum load : 989KG

Weight : 645KG

Fuel tank capacity : 150L

Water tank capacity : 80L

Life fishing box : 80L

Number of passengers : 8 people

Power system

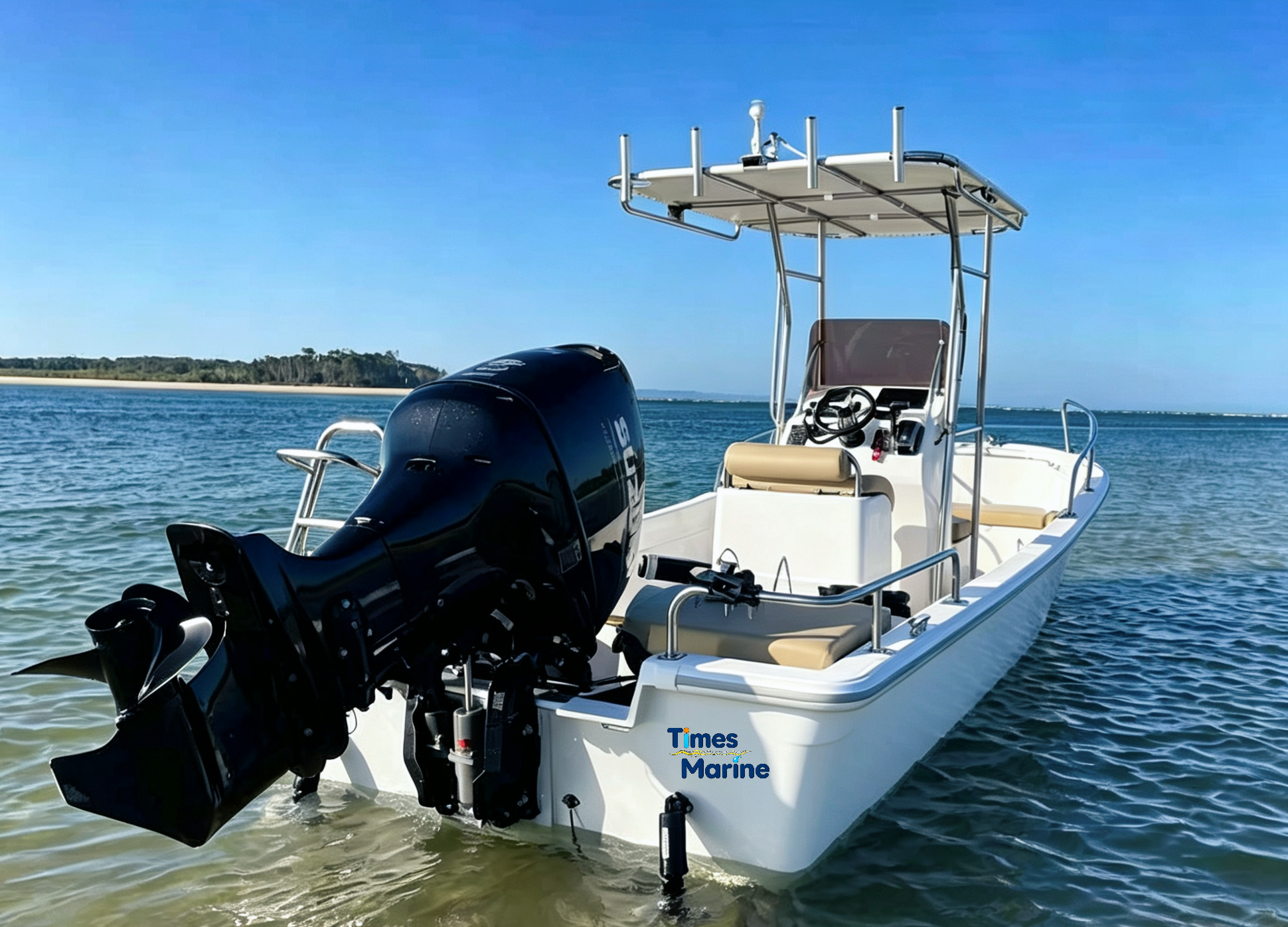

Economical and efficient: 50HP single outboard is recommended, with a balance between endurance and performance.

Performance upgrade: supports expansion to 70HP high-power engine, adapts to 25feet shaft length, and responds to wind and wave challenges at high speed.

Transportation

Packing solution 20-foot container for 2 boats 40-foot container for 4 boats

Note: If you installing the maximum hp engine, please confirm with manufacturer, very important for boat.

19 FOOT PANGA HULL FIBERGALSS BOAT FISHING PRODUCT FEATURES

Core features

 Double hulls to conquer wind and waves

• Deep sea/shallow water dual mode: unique double hull + deep V fluid design, rock-solid in huge waves, flexible in shallow waters.

• Anti-wave high bow: traditional PANGA high bow, resists the impact of swells,

  assists the buoyancy of fishing nets, and doubles the safety.

• Keel reinforcement structure: longitudinal and transverse keels connect the hull, stability is increased by 40%, and sailing is more durable.

⚙️ Lightweight military-grade material

• Fiberglass innovation: 8-14mm vacuum adsorption fiberglass, tensile strength +25%, corrosion resistance, and impact resistance, 5-year warranty.

• PVC CORE deck: replaces traditional wooden boards, waterproof and moisture-proof,

  lightweight design (net weight 645kg), stronger load-bearing.

• Super large load capacity: maximum load 989KG, 8 people + equipment can be easily accommodated,

  and space utilization is extremely optimized.

⚓ Professional fishing · Leisure all-round

• No worries about endurance: 150L fuel tank + 80L water tank + 80L living fishing box,

  support all-weather operation.

• Flexible power: 50HP single outboard engine is recommended (economical and efficient),

  which can be upgraded to 70HP violent power (shaft length 20/25 feet).

• Multi-function deck: The double hull structure keeps the deck clean, and fishing, partying,

  and sightseeing can be switched with one button.

Efficient Transportation · Personalized Customization

• Flexible Packing: 2 in a 20-foot container, 4 in a 40-foot container, global transportation costs are reduced by 30%.

• Exclusive Customization: Hull color and functional modules can be adjusted as needed to create your exclusive sailing tool.

Applicable Scenarios

• Deep-sea fishing Family leisure Group adventure

• Steady sailing in huge waves Spacious space for 8 people Flexible and maneuverable in shallow water

• All-weather storage of catches Water picnic party Snorkeling, surfing

• Fishing net operation support Sightseeing lounge chair layout High-speed sailing experience

19 FOOT PANGA HUL FISHING FIBERGLASS BOAT ACCESSORIES FOR OPTIONAL&STANDARD

Standard accessories

(factory standard, ready to use)

1. Stainless Steel Cleats

2. Stern Seat with Storage Box

3. Driver Seat with Cushion

4. Living Fish Box or Storage Box

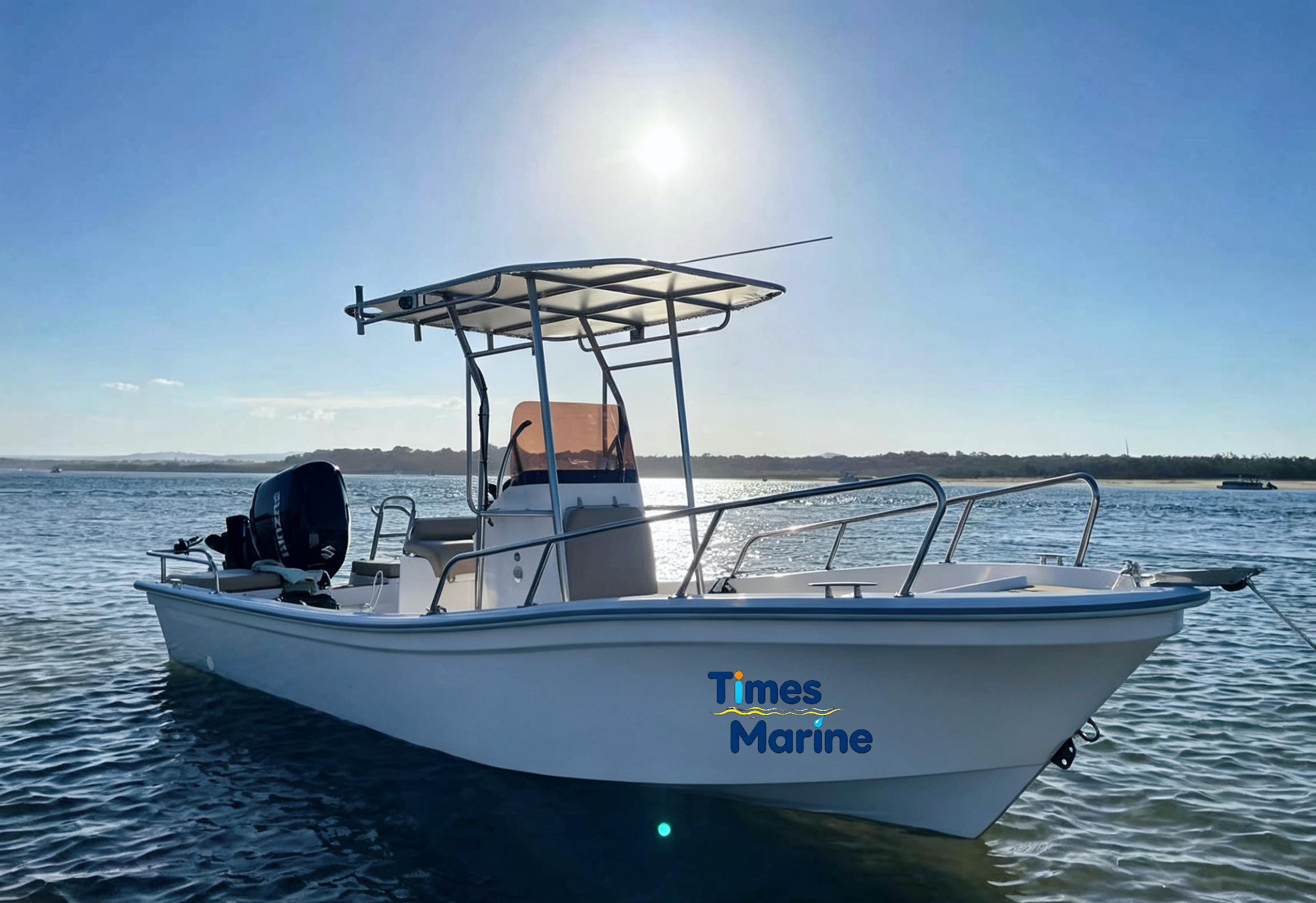

5. Centre Console with Cushion

6. Front Seat with Storage Box

7. Anchor Storage Box

8. Bollard & Anchor Roller

9. 150L Fuel Tank System (with oil gauge and pipeline)

10. Automatic Bilge Pump

Optional accessories

(Upgrade as needed to unlock advanced functions)

1. Structural reinforcement : Front/rear stainless steel guardrails ▪ Stainless steel/aluminum alloy T-top rack ▪ Stainless steel fishing rod holder ▪ Hydraulic support rod




2. Control upgrade : Hydraulic steering system (with cable) ▪ Mechanical steering system (with cable)

   ▪ Outboard engine (optional)




3. Function expansion : 80L water tank ▪ Battery box + switch ▪ Stainless steel ladder ▪ EVA non-slip deck

   ▪ ¾ hull large awning




4. Comfort and protection : Full-cover canopy (stainless steel frame) ▪ Folding awning

   ▪ Full boat protection cover ▪ Life jacket (8 pieces)




5. Aesthetic customization : Special fiberglass gel coating color ▪ Seat cushion color customization

   ▪ Trailer (for transportation only)

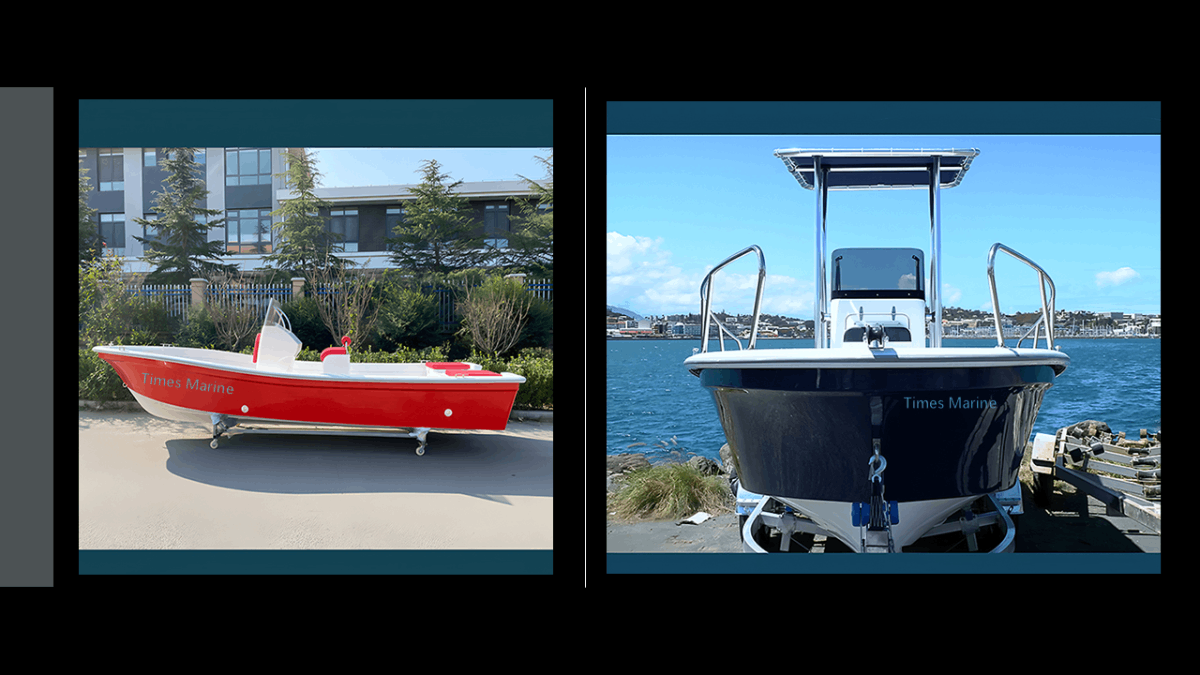

19 FOOT PANGA HULL FASHION FISHING BOAT OPERATION & SAFETY

⚠️ OPERATION GUIDELINES

Pre-Departure Checks

Weight Limit: Max load 989KG (8 persons + gear). Overloading risks instability.

Engine Compatibility: Use recommended 50HP single outboard(max 70HP with 25'' shaft).

Fuel & Water: Verify 150L fuel tank, 80L water tank, and secure fish/storage boxes.

Safety Gear: Ensure 8 life vests, fire extinguisher, navigation lights, and VHF radio.

Navigation Rules

Rough Seas: Navigate waves at an angle using the deep-V hull; avoid direct head-on impacts.

Shallow Waters: Reduce speed; utilize dual-hull agility to adjust draft depth.

Fishing Nets: Secure nets to avoid tangling with the propeller or hull.

Emergency Protocols

Engine Failure: Deploy anchor immediately, activate distress signals, and contact coastguard.

Flooding: Engage bilge pump and redistribute weight to stabilize the boat.

MAINTENANCE & CARE

⚓ Hull Maintenance

Rinse with fresh water post-use to remove salt. Clean with pH-neutral soap; avoid abrasives.

Inspect 8-14mm fiberglass for cracks annually. Repairs covered under 5-year warranty.

PVC Core Deck: Wipe spills promptly; avoid heavy impacts. Store dry to prevent warping.

Keel Inspection: Check longitudinal/transverse keels quarterly for corrosion or loose bolts.

⚙️ Engine & Systems

Change oil every 50 hours (30 hours for 70HP). Flush cooling system after saltwater use.

Winterize: Drain fuel or add stabilizer for long-term storage.

Hydraulic/Mechanical Steering: Lubricate cables annually; check for stiffness or leaks.

Storage & Transport

Onshore Storage: Use padded supports to prevent hull deformation. Cover with UV-resistant tarp.

Shipping: Secure boats in 20ft/40ft containers (2/4 units) with anti-slip mats and reinforced straps.

✅ SAFETY FIRST

Life Vests: Mandatory for all passengers. Store extras in labeled compartments.

Environmental Compliance: Dispose of oil/fuel per regulations; no waste dumping at sea.
