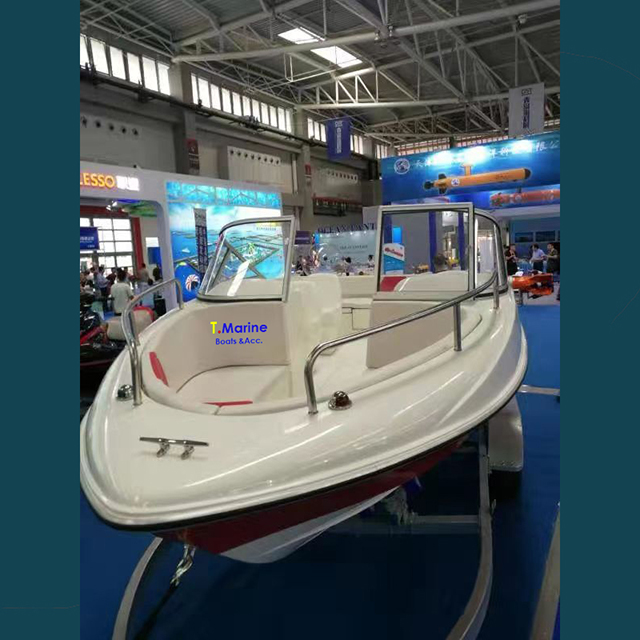

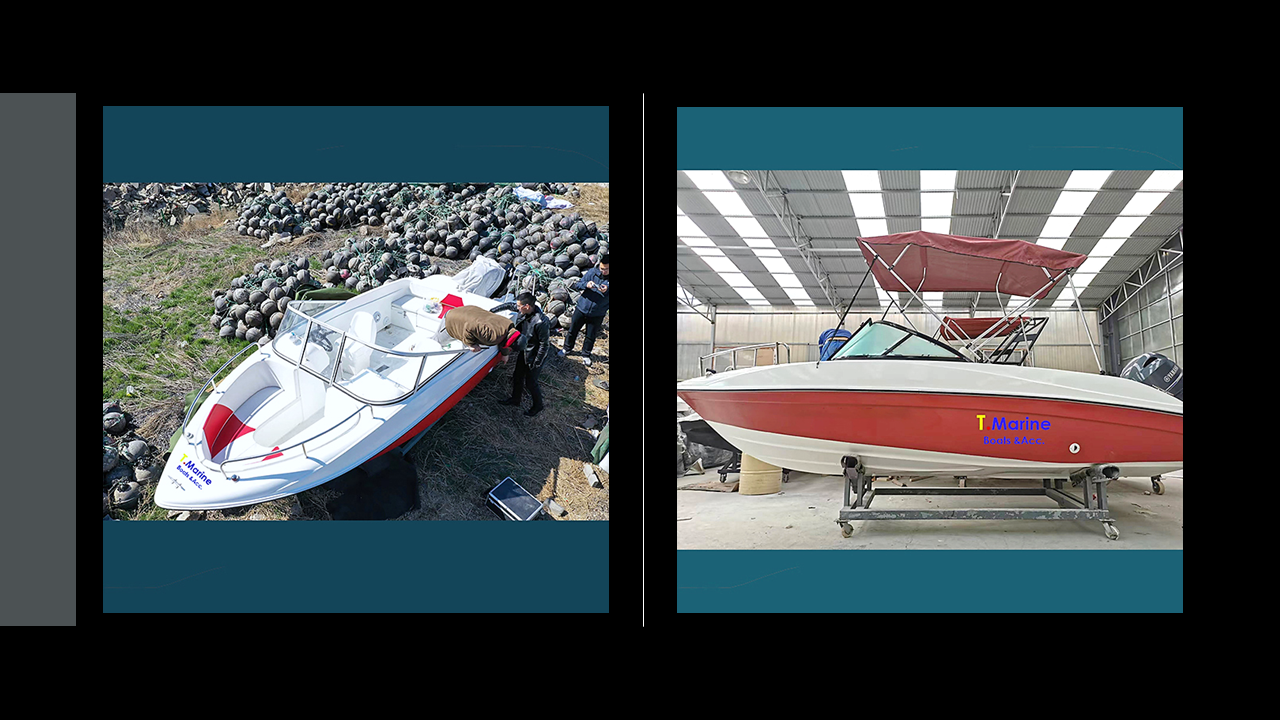

19FOOT FIBERGLASS SPEED BOAT YACHT TECHNOLOGY SPECIFICATION

Core hull parameters

Total length: 5.8 meters | Beam: 2.25 meters

Depth: 0.8 meters | Draft: 0.35 meters

Maximum passenger capacity: 9 people

⚙️ Power performance

Recommended horsepower: 60-115 horsepower for single outboard.

Control response: Flexible steering in shallow waters, economical fuel consumption.

Note: Before installing the maximum horsepower engine, please contact the factory first, this is very important for the boat.

19 FOOT HIGH PERFORMANCE SPEED BOAT YACHT FEATURES

Core product features

1. Golden size, flexible control

• Hull parameters: 5.8 meters (length) × 2.25 meters (width) | Passenger capacity: 9 people

• Recommended power: single external engine 60-115 horsepower, both economical and performance, maximum speed can reach 26-40 knots

• Lightweight design: vacuum adsorption process hull, compact and solid structure, unimpeded shallow water passage

2. Ingenious craftsmanship, military quality

• 8-14mm high-density fiberglass: tensile strength increased by 30%, corrosion resistance and aging resistance, 5-year warranty commitment

• Advanced factory technology: hull has no bubbles, zero gaps, perfect balance of lightweight and durability

3. Humanized detail design

• Multi-function area at the bow: standard storage box + non-slip soft pad, cushions can be added, leisure and storage are not wrong

• Expansion potential: reserved modification interface, easy upgrade of awnings, navigation systems, etc.

Core advantages

• Super durable: 5-year hull warranty, no fear of seawater erosion.

• Deep customization: OEM/ODM supports personalized upgrades in appearance, function, and brand logo.

19FOOT FIBER GLASS SPEED YACHT STANDARD AND OPTIONAL ACCESSORIES LISTS

Standard accessories

1. Safety protection

Rubbing Strake

Sidelights

Rail in the Front

2. Hull and structure

U-shaped Ring at Bow

Front Cabin

Circular Inspection Cover

3. Driving and control

Windscreen

Cable Conduit

4. Functional components

Stainless Steel Seats

Battery Box

Hinges (6pcs Hinges)

Buckles (3pcs Buckles)

5. Warning and communication

Stern Horn (4pcs Shofars)

✨ Optional accessories

1. Practical configuration

Trailer

Foldable Anchor

Fender

2. Control upgrade

Hydraulic Steering System

3. Comfort and convenience

Passenger seat

Ladder

Cushion

Table

4. Deck optimization

EVA deck

5. Protection and sunshade

Canopy

Rail at back

6. Sports and adventure

Roll bar/Water ski frame

⚠️ One or the other restriction: water ski frame and awning cannot be installed at the same time.

19FOOT SPEED FIBERGLASS YACHT OPERATION AND SAFETY

⚠️ Operation precautions

1. Must be checked before sailing

• Confirm that the fuel and engine oil are sufficient, and there is no abnormal sound in the external engine power system.

• Check that the life-saving equipment (9 life jackets, fire extinguisher, signal light) is complete and available.

• Ensure that there are no cracks in the hull and the bilge pump functions normally.

2. Passenger safety regulations

• Overloading is strictly prohibited: no more than 9 passengers, and the load is evenly distributed.

• All-staff protection: wear life jackets during navigation, and children need special supervision.

• Weather warning: No sailing when the wave height is greater than 0.8 meters or the wind force is greater than level 4.

3. Navigation operation guide

• Preheat the engine at low speed for 3 minutes after starting, and avoid rapid acceleration.

• Switch to shallow water mode in shallow water areas (water depth <0.5 meters) to prevent the propeller from touching the bottom.

• Slow down and drive slowly when turning, and control the inclination angle when making sharp turns.

4. Mooring and storage

• Use bow U-shaped ring to fasten the cable and install anti-collision fenders.

• Cover the dustproof cloth for long-term storage, and the hull bracket supports evenly.

• Drain the engine cooling water in winter and apply anti-rust oil to metal parts.

️ Safe repair and maintenance

1. Regular maintenance plan

• Engine maintenance: change the engine oil every 50 hours, check the propeller and drive shaft every 100 hours.

• Hull inspection: Check the scratches on the FRP surface every month, and repair them in time to prevent leakage.

• Electrical system: Check the battery and line waterproofness every quarter.

2. Deep cleaning and care

• After using seawater, rinse the hull with fresh water to remove salt stains.

• Wax the FRP surface every quarter to delay UV aging.

• Clean the deck drain holes weekly to prevent water corrosion.

3. Key protective measures

• Anti-corrosion treatment: Apply anti-rust grease to metal parts every six months.

• Sealing upgrade: Replace the hatch/porthole sealing strips every year.

• Structural inspection: Professionally inspect the vacuum adsorption hull structure every 2 years.

4. Emergency response

• Hull damage: Immediately activate the drainage pump and dock nearby.

• Engine failure: Turn off the power and anchor, hoist the fault signal flag.

• Fire risk: Use a fire extinguisher and evacuate the passengers to a safe area.
