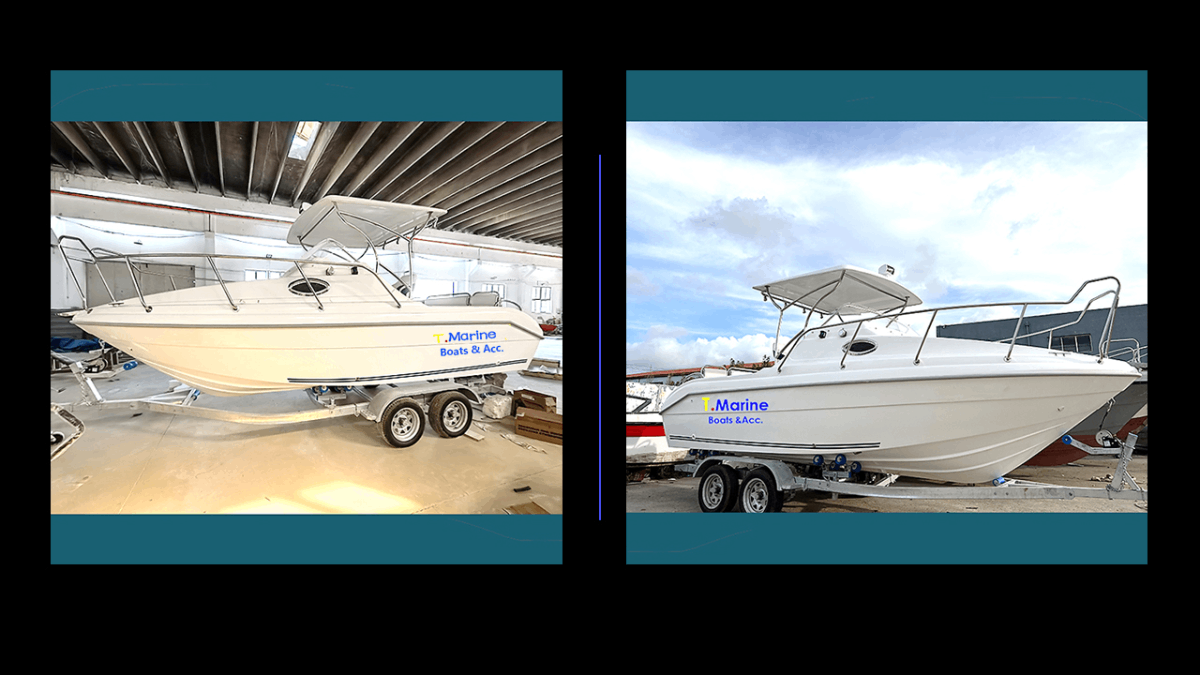

20FOOT SMALL FIBERGLASS SPEED YACHTS TECHNICAL PARAMETER

Core parameters

Total length: 6.25 meters | Beam: 2.36 meters

Depth: 1.16 meters          | Draft: 0.38 meters (light load)

Unladen weight: 900kg    | Maximum passenger capacity: 10-12 people

⚙️ Power performance

• Recommended configuration: single external engine 115-220 horsepower

• Control response: rapid acceleration, flexible steering in shallow waters

  Note: Before installing the maximum horsepower engine, please contact the factory first, this is very important for the boat.

Hull advantages

• Lightweight design: no pressure for near-shore exploration.

• Military-grade strength: fiberglass tensile strength increased by 35%, salt spray corrosion resistance and long life.

• Multi-functional layout: spacious deck suitable for fishing/party/sightseeing.

20FOOT MINI FIBERGLASS SPEED YACHTS FEATURES

Core product features

1. Hardcore parameters, professional definition

• Large capacity: 6.25 meters long × 2.36 meters wide, spacious for 10-12 people, worry-free group activities

• Lightweight design: weighs only 900kg, shallow water draft depth optimization, more freedom for nearshore exploration

• Powerful power: suitable for 115-220 horsepower single external engine, maximum speed can reach 55 knots, rapid response

2. Military-grade hull technology

• 8-14mm high-density fiberglass: vacuum adsorption integrated molding, tensile strength increased by 40%, corrosion resistance and impact resistance.

• Zero bubble structure: the hull is tight and seamless, with a perfect balance of lightweight and firmness.

✅ Core advantages

• Super durable: 5-year hull warranty, no fear of seawater erosion.

• Flexible control: hydraulic steering optional, precise and labor-saving.

• Economic and energy-saving: lightweight design reduces fuel consumption and increases endurance by 25%.

20FOOT SMALL FRP SPEED YACHTS STANDARD & OPTIONAL ACCESSORIES

Standard accessories

1. Navigation control

Mechanical steering system

Console control panel

Guide anchor pulley

2. Safety and protection

Electric bilge pump

Stainless steel rail

Navigation light

3. Hull and structure

Mooring buckle

U-shaped ring

Stainless steel ladder

4. Comfort and convenience

Windshield

Cushion

Skylight

Interior decoration

Cabin door

5. Power and storage

Electric wire

Outlet

100L fuel tank

Storage box Box

6. Sanitary facilities

Electric toilet

Washbasin

7. Sports extension

Stainless water ski pole

✨ Optional accessories

1. Utility extension

Trailer

Battery

Water tank

2. Navigation and entertainment

Magnetic compass

CD player

3. Fishing special

Fishing pole holder

4. Protection and maintenance

Boat cover

Canopy

5. Comfort upgrade

Passenger seat

Table top

Shower system

6. Mooring and anchoring

Anchor

Customization Instructions

• The standard configuration meets basic navigation and comfort requirements, and optional accessories can be freely combined and upgraded according to the scene.

• OEM/ODM support: deeply customized accessory specifications, brands and function integration.

20FOOT FIBERGLASS HULL SMALL SPEED YACHTS OPERATION AND SAFETY

⚠️ Operation precautions

1. Inspection before sailing

• Confirm that the fuel and engine oil are sufficient, and there is no abnormal noise in the external engine power system.

• Check that the life-saving equipment (12 life jackets, fire extinguishers, signal lights) is complete and available.

• Ensure that there are no cracks in the hull and the bilge pump functions normally.

2. Passenger safety regulations

• Overloading is strictly prohibited: no more than 12 passengers, and the load is reasonably distributed.

• All-staff protection: wear life jackets during navigation, and children must be supervised by a dedicated person.

• Weather warning: No sailing when the wave height is >1 meter or the wind force is >4.

3. Navigation operation guide

• Preheat the engine at low speed for 3-5 minutes after starting, and avoid rapid acceleration.

• Switch to shallow water drive mode in shallow water areas (water depth <0.6 meters) to prevent the propeller from touching the bottom.

• Slow down and drive slowly when turning to avoid the risk of roll caused by sharp turns.

4. Mooring and storage

• Use the bow U-shaped ring to tighten the cable when docking, and install anti-collision fenders.

• Long-term storage requires covering with dustproof cloth, and the hull bracket should be evenly supported.

• Drain the engine cooling water in winter, and apply anti-rust oil to key metal parts.

️Safety repair and maintenance

1. Regular maintenance plan

• Engine maintenance: Change the engine oil every 50 hours, check the drive shaft and propeller every 100 hours.

• Hull inspection: Check the scratches on the FRP surface every month, and repair them in time to prevent leakage.

• Electrical system: Check the waterproof sealing of batteries and lines every quarter.

2. Deep cleaning and care

• After using seawater, the hull needs to be rinsed with fresh water to remove salt corrosion.

• The FRP surface is waxed and maintained every quarter to delay ultraviolet aging.

• The deck drain holes are cleaned weekly to prevent blockage and water accumulation.

3. Key protective measures

• Anti-corrosion treatment: Apply anti-rust oil to metal connectors every six months.

• Sealing upgrade: Replace the hatch/porthole sealing strips every year.

• Structural inspection: Professionally inspect the vacuum adsorption hull internal structure every 2 years.

4. Emergency response

• Hull damage: Immediately activate the bilge pump to drain water and dock nearby.

• Engine failure: Turn off the power, drop anchor, contact rescue and hoist the fault signal.

• Fire risk: Use the fire extinguisher quickly and guide the passengers to evacuate in an orderly manner.
