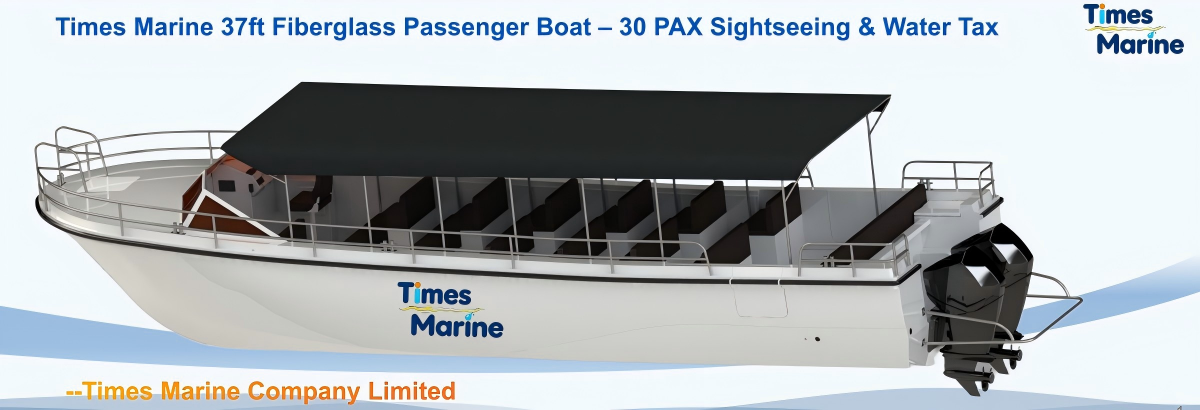

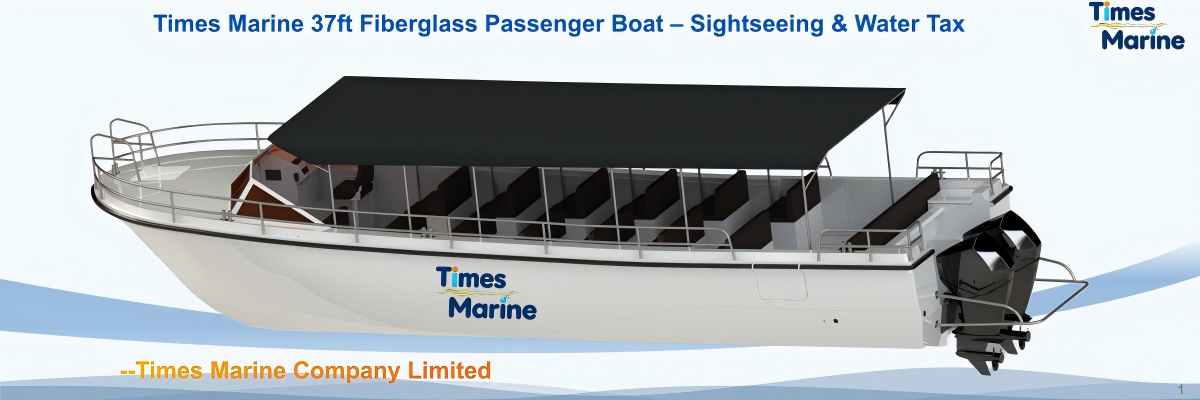

Times Marine 37Foot 11.19Meter Fiberglass Passenger Boat

DIMENSIONAL

Length Overall: 37ft (11.19m)

Width overall: 10.6ft (3.2m)

Draft: 21 in (0.535m)

Full displacement: 1.460t

Max Loading: 2280kg

Net Weight: 4350kg

Full Load Displacement: 8.398 tons

Transom Height: 0.66m

V-Shape Angle: 18°

Capacity

Seating capacity: 24person

Max  capacity: 30person

Outboard Engine

Max horsepower: 2x300hp(2x223.7kW)

If use single engine, suggest max 300hp

Fuel Tank: 1000L

Diesel Capacity: 200L

Transom height: 25.98 in (0.66m)

Max speed: 32knots

For maximum hp engine, confirm with factory, very important

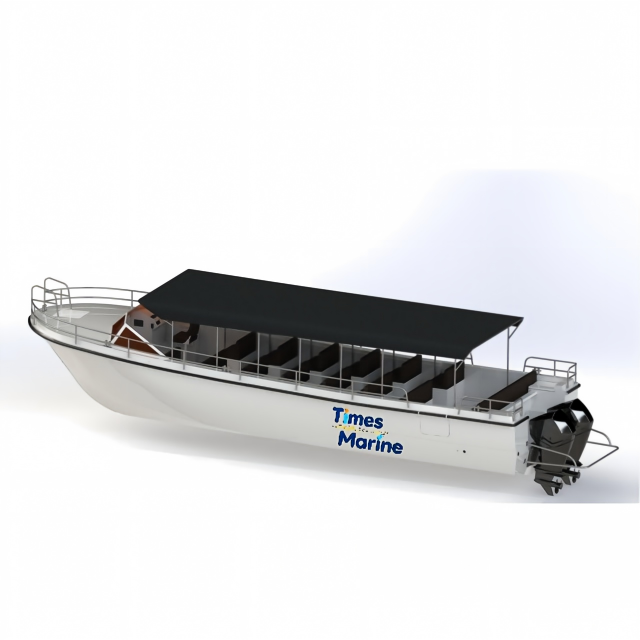

Times Marine 36.7ft Fiberglass Passenger Boat

– Engineered for Commercial Passenger Operations

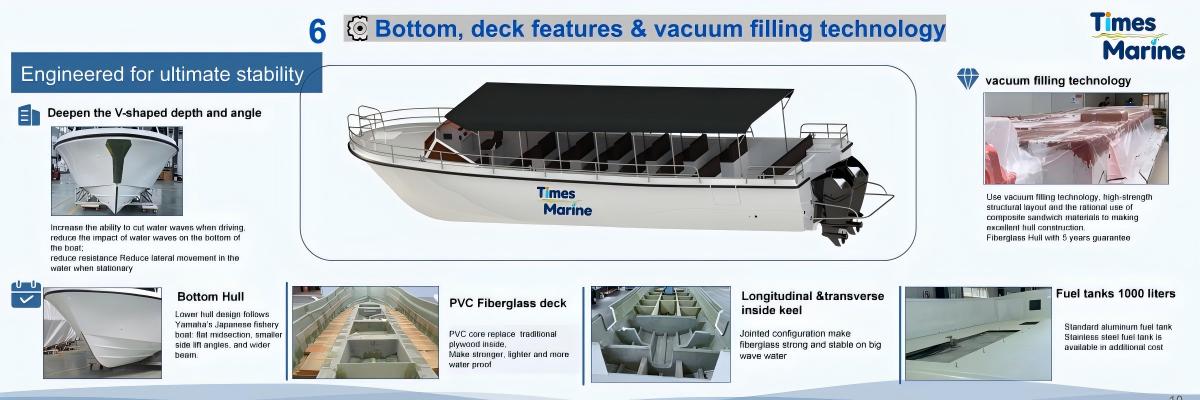

Lightweight Yet Durable Composite Fiberglass Construction

Constructed using advanced composite fiberglass technology, this 11.19m passenger boat achieves an optimal strength-to-weight ratio. The lightweight design enhances fuel efficiency. The foam-filled hull provides additional structural integrity and buoyancy, giving you and your passengers peace of mind on every voyage.

✨ Fiberglass hull – engineered for impact resistance and structural integrity

✨ PVC core deck – 100% waterproof, rot-proof, and maintenance-free

✨ Vacuum infusion technology – ensures void‑free, strong, and lightweight laminate

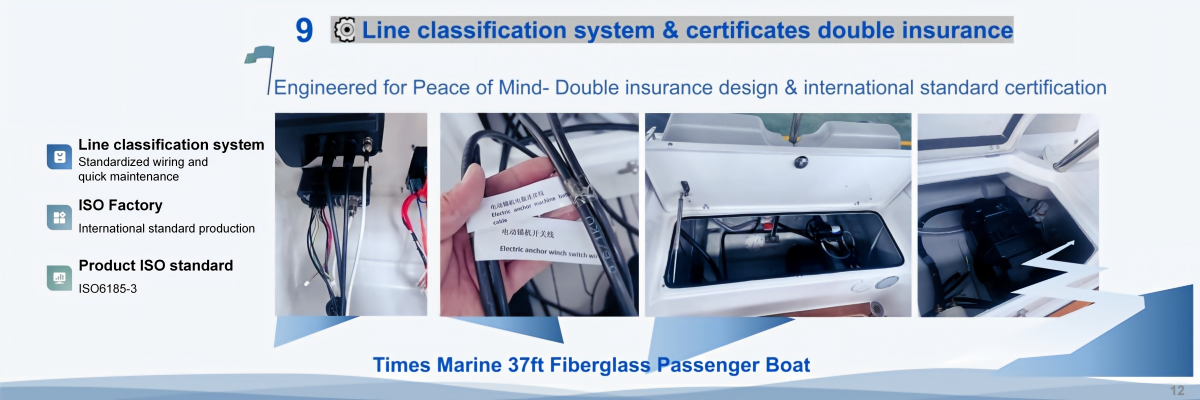

Line classification system & certificates double insurance

Times Marine 37ft passenger vessel

Frequently Asked Questions (FAQ)

Q1: What is the maximum passenger capacity of the Times Marine 37ft passenger boat?

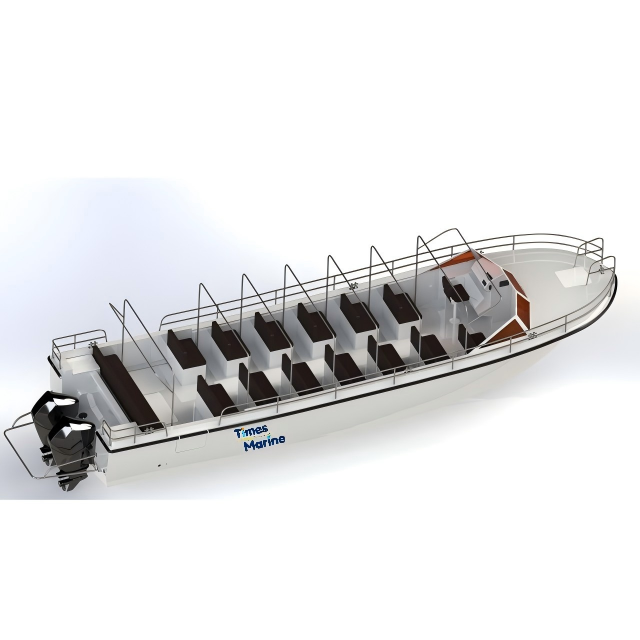

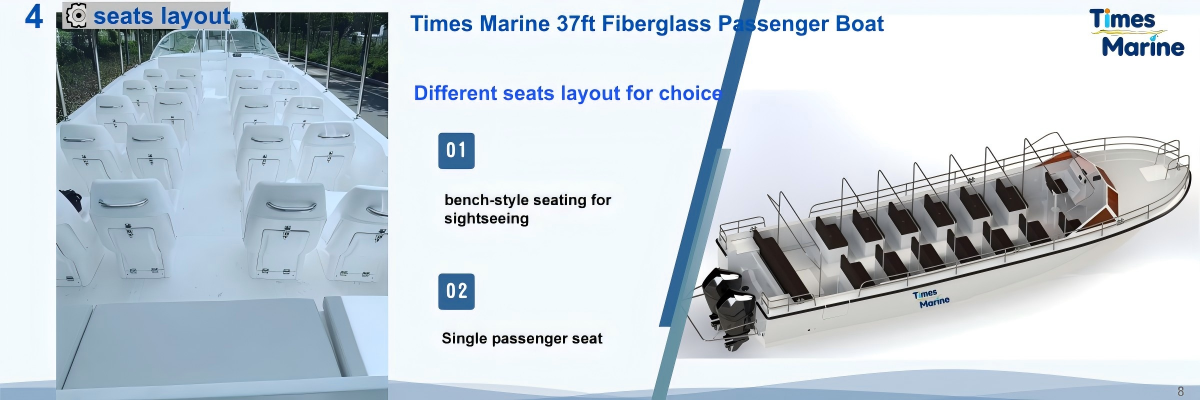

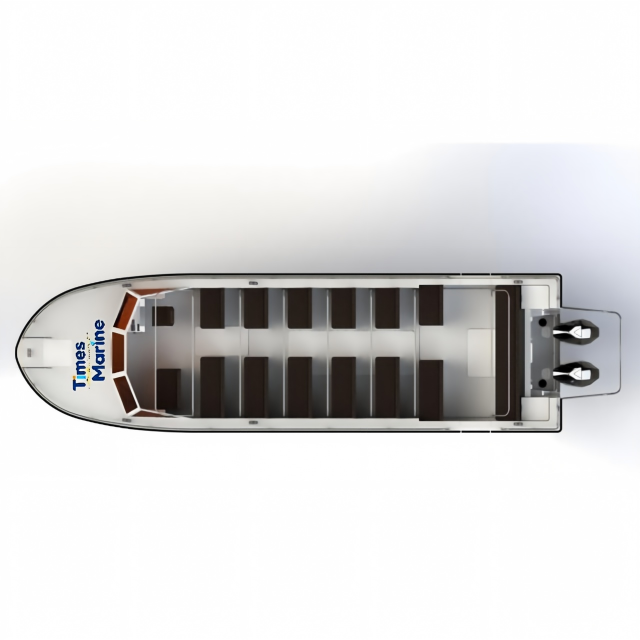

The vessel has a recommended capacity of 24 passengers for optimal comfort, with a maximum capacity of 30 passengers. The modular seating layout allows you to configure the interior based on your specific operational needs—bench seating for higher capacity or individual seats for premium tours.

Q2: What engine configuration is recommended for this vessel?
The Times Marine 37ft is designed for twin outboard engines with a recommended power range of 500-600HP. The maximum configuration is 2 x 300HP, delivering a top speed of 32 knots. This twin-engine setup also provides valuable redundancy for commercial operations.

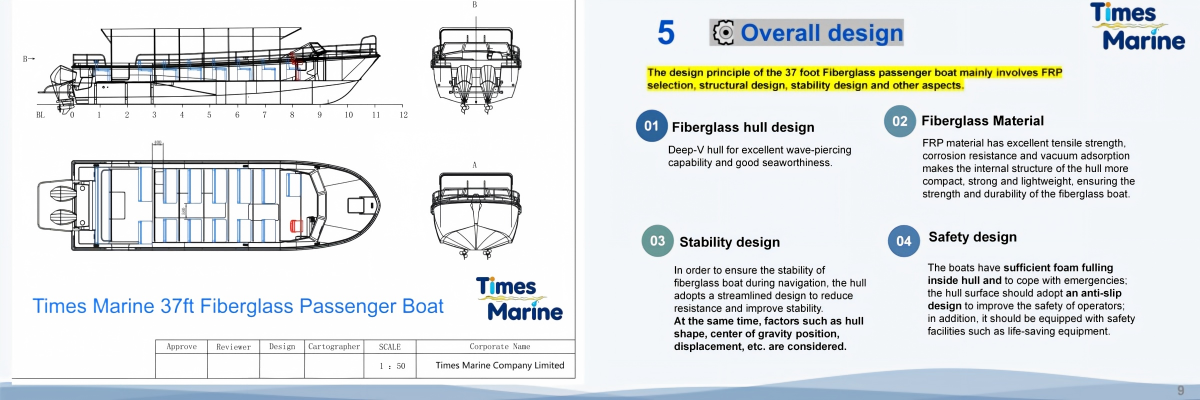

Q3: How does the semi-displacement hull benefit passenger comfort?

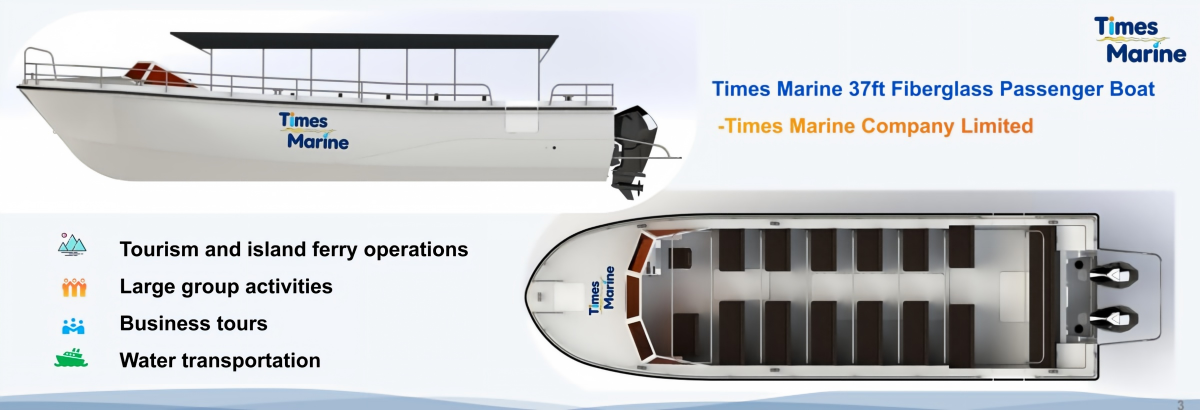

The semi-displacement hull design reduces drag and minimizes wave impact, delivering a remarkably smooth ride even in choppy waters. Combined with the 18° V-shape and wide 3.2m beam, passengers experience less motion sickness and greater comfort during extended tours.

Q4: What is the fuel capacity and expected range?
The vessel is equipped with a 1000L main fuel tank and a separate 200L diesel tank. This substantial capacity supports extended operations, multiple trips, or all-day tours without the need for frequent refueling stops.

Q5: Is the canopy included as standard equipment?
The oversized canopy for sun and rain protection is available as an optional upgrade. It provides generous coverage to keep passengers comfortable in various weather conditions and can be specified during the ordering process.

Q6: What types of operations is this vessel best suited for?
The Times Marine 37ft passenger boat is ideal for coastal sightseeing tours, island-hopping excursions, water taxi services, passenger transport, and commercial tourist operations. Its versatile design and modular seating make it adaptable to virtually any passenger-carrying application.
