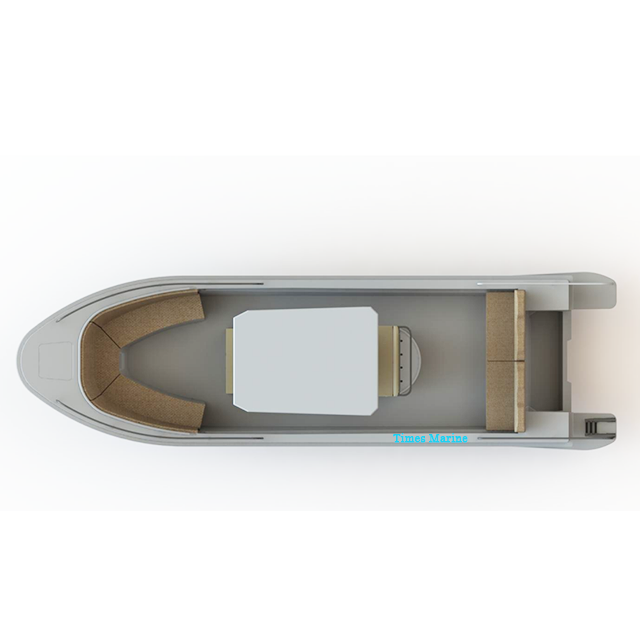

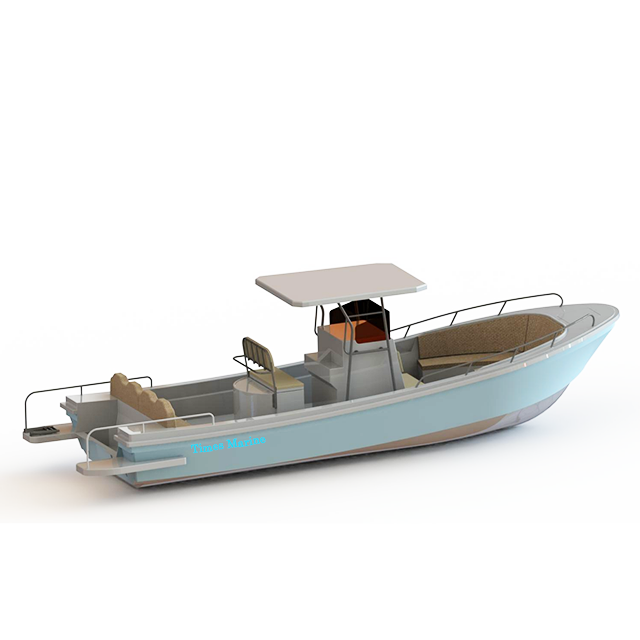

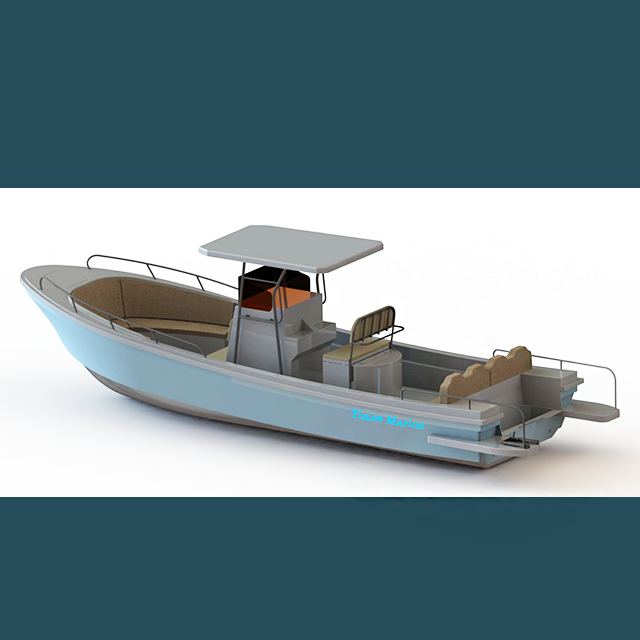

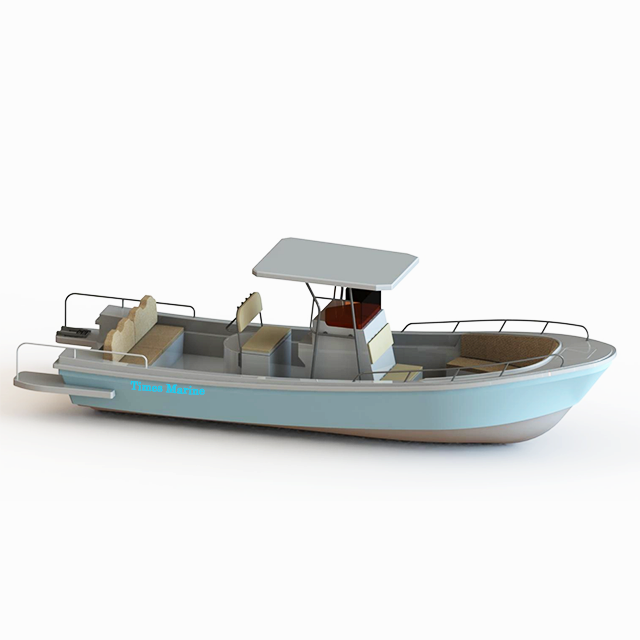

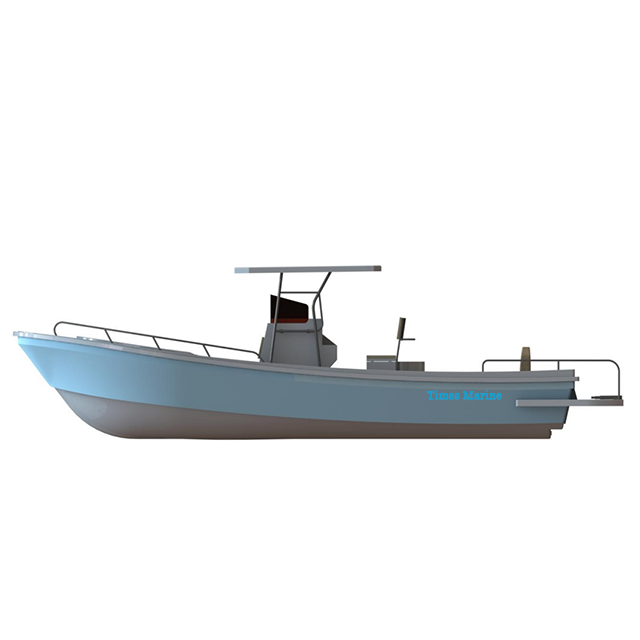

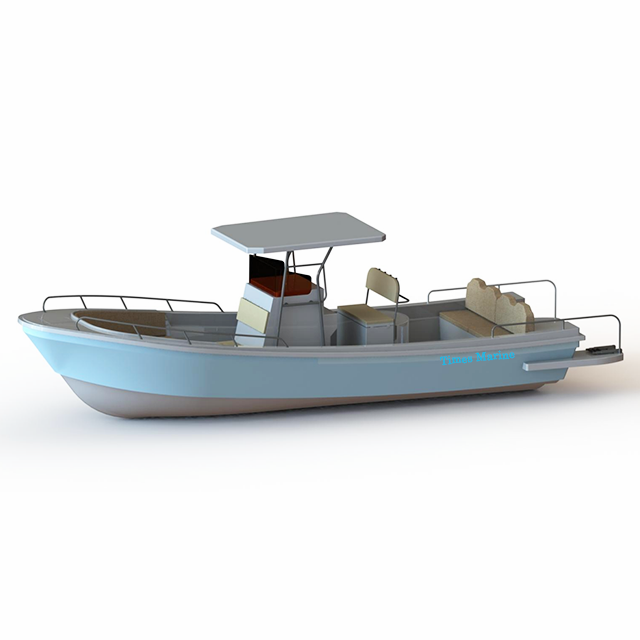

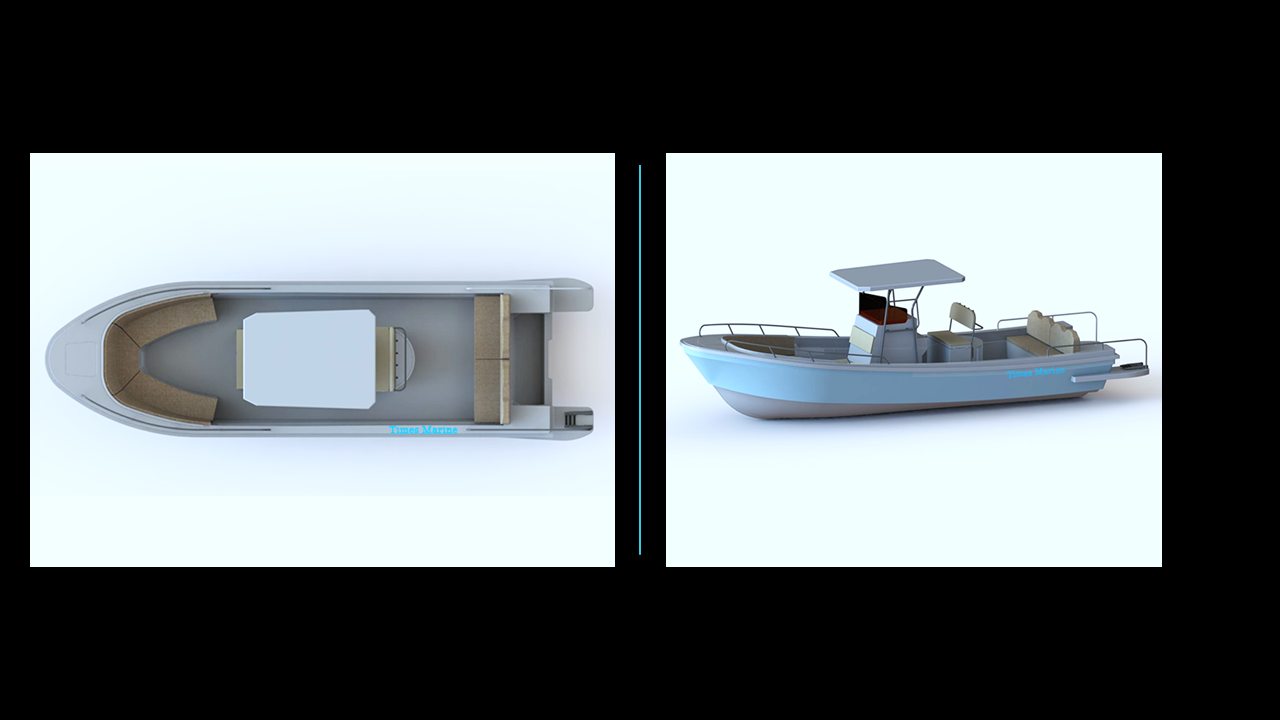

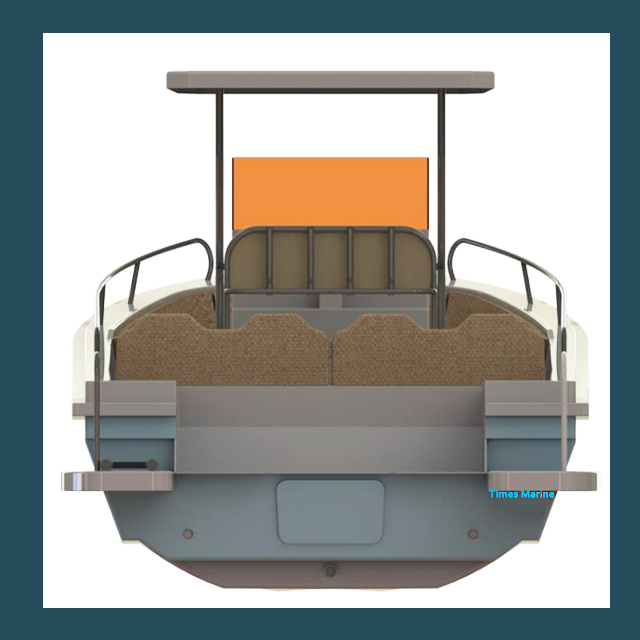

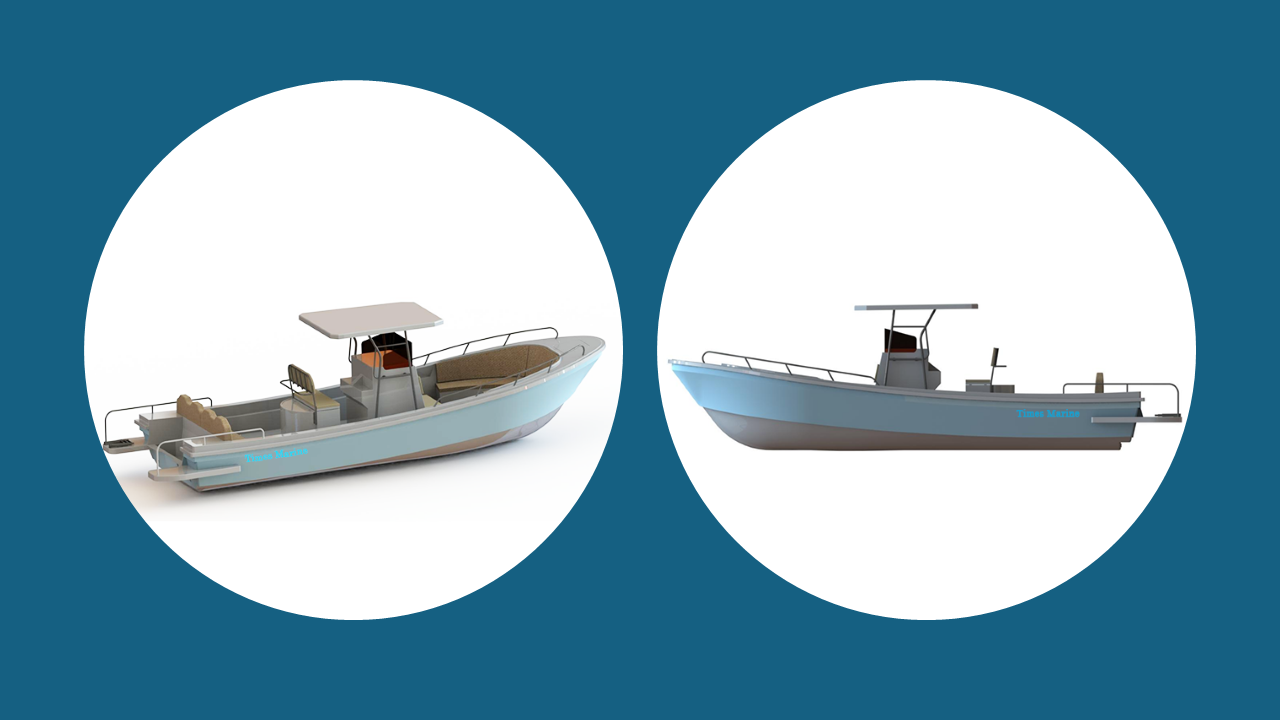

25Foot Custom Panga Fishing Boat Technology Specification

1. Hull size & Shipping

• Model: NEW SW760
• Length overall: 7.6 meters
• Internal length: 5.3 meters
• Width overall: 2.2 meters
• Internal width: 1.8 meters

• 40ft container: 2pcs

• V-shaped degree: 17 °



3. Crew capacity and Weight

• Crew capacity: 10 people
• Maximum loading: 1240kg
• Net weight: 1700kg

4. Power and fuel system

• Fuel tank capacity: 300L

• Engine shaft: XL 25


• Recommended power: 115HP
• Max hosepwer: 150HP

• Single or twin engines for option

(Notice: When you install the maixmum horsepower engine,please confirm with manufacturer.)

25Foot Commercial Panga Fishing Boat Features

1. Hull design and performance

✅ Wave-resistant deep V hull:

Deep V-shaped bottom design effectively splits waves, improves navigation stability, and adapts to complex sea conditions.

✅ Double hull (Panga structure):

The longitudinal and transverse keels are strengthened to enhance impact resistance, taking into account both the function of fishing boats and the comfort of leisure boats.

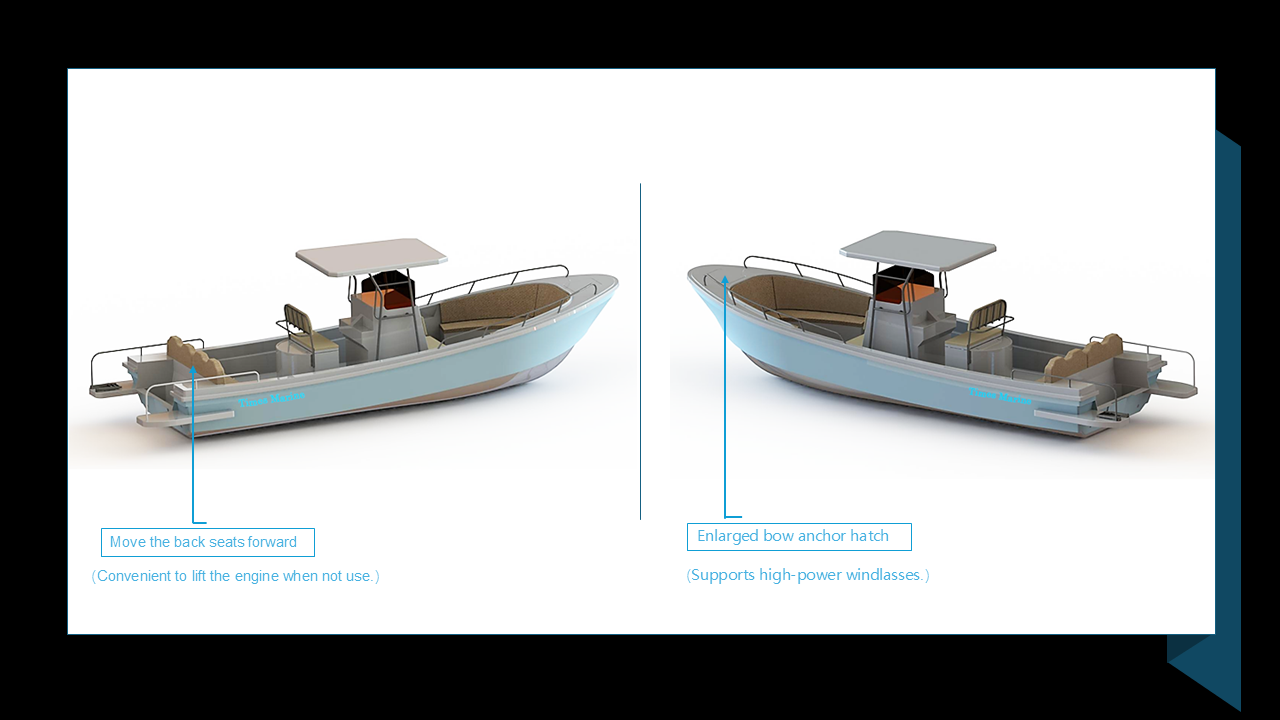

✅ Optimized layout:

Enlarged bow anchor hatch to adapt to high-power anchor windlasses;

The rear seats are moved forward for easy engine maintenance and storage.

2. Advanced materials and processes

⭐ Vacuum adsorption fiberglass technology:

The internal structure of the hull is tight, the strength is increased by 30%, and a five-year warranty is provided.

⭐ PVC core deck:

Replaces traditional plywood, has excellent waterproofness, is 20% lighter, has higher strength, and eliminates corrosion problems.

⭐ Repairable fuel tank:

The internal fuel tank design can be quickly repaired or replaced in case of failure.

⭐ Gel coat brand and color customization:

ASHLAND gel coat is used to support personalized customization of hull color.

3. Functional configuration

✨ Power adaptation:

Supports 115-150 horsepower single engine or twin engine configuration to meet different speed and load requirements.

✨ Weight and capacity:

Maximum load 1240kg, net weight 1700kg, taking into account both lightness and durability.

✨ Internal Fuel tank:

300L fuel tank design to ensure long endurance.

4. Multi-functional application scenarios

✅ Leisure and entertainment:

The spacious deck can accommodate 10 people, suitable for leisure and entertainment

✅ Professional fishing:

The high bow design provides buoyancy for the fishing net, reduces the impact of swell waves, and is suitable for all-weather operations.

✅ Offshore operations:

The sturdy hull structure is suitable for professional needs such as transportation, inspection, and light fishing.

5. Personalized customization service

⚓ Brand logo:

supports printing brand name and logo on the hull.

⚓ Optional configuration:

Upgrade details such as anchor machine power and seat material as needed.

⚓ Flexible adaptation:

From color to functional configuration, it meets diverse usage needs.

25Foot Panga Fiberglass Fishing Boat Standard & Optional Configuration

25Foot Panga Fishing Fiberglass Boat Operation & Maintence

⚙️ Daily maintenance guide

✅ Hull maintenance

▸ Fiberglass cleaning: rinse the hull with fresh water every week to avoid salt corrosion; use special fiberglass cleaner, strong acid/alkali cleaning is prohibited!

▸ Gel coat repair: When scratches or fading are found, use ASHLAND gel coat to repair in time to prevent the fiber layer from being exposed.

▸ Deck inspection: Check the joints of the PVC core deck every month to ensure that there are no cracks or water seepage.

✅ Power system maintenance

▸ Engine maintenance:

Check the engine oil level after each use and replace it every 100 hours;

Clean the propeller entanglement regularly to avoid power loss.

▸ Fuel management:

Filter impurities before filling the tank, and clean the inner wall of the 300L tank every quarter;

Drain the fuel when it is stopped for a long time to prevent deterioration and corrosion of the pipeline.

✅ Key component inspection

▸ Drain pump test:

Start the bilge pump once a month to ensure that the automatic drainage function is normal.

▸ Battery maintenance:

Avoid over-discharge of 60A battery, and disconnect the switch when stopping;

Check the electrode contacts every 3 months and apply anti-oxidation grease.

Regular maintenance cycle

⚡ Minor maintenance:

Every 50 hours｜Replace engine oil, filter, check cables and mooring piles (Stainless steel cleats).

⚡ Major maintenance:

Every 300 hours｜fully check the hydraulic system (if any), hull structure, and electrical circuits.

⚠️ Safety operation specifications

✨ Must check before sailing

▸ Safety equipment:

Confirm that life jackets (Life vest), fire extinguishers, and signal lights are complete and available.

▸ Load control:

Overloading is strictly prohibited! Maximum load 1240kg (including personnel and materials).

▸ Fuel monitoring:

Ensure that the fuel reserve is ≥1/3 through the oil gauge.

✨ Pay attention during navigation

Wave area response:

Although the deep V hull is wave-resistant, it is still necessary to avoid tilting above 17°, and slow down when encountering large waves.

✨ Engine operation:

▸ When switching between single and dual engines, ensure power balance;

▸ After a sudden flameout, restart after 30 seconds to protect the starting motor.

Emergency handling

▸ Water ingress emergency:

Immediately start the bilge pump, check for leaks and temporarily seal with waterproof glue.

▸ Engine failure:

Enable the backup battery (if any), contact rescue and anchor (the power of the anchor windlass needs to be tested in advance!).

Long-term stoppage protection

▸ Hull covering: Use a boat cover or park in a sunshade to avoid ultraviolet aging.

▸ Engine maintenance: After disassembling the outboard motor, store it vertically and drain the cooling water.

▸ Anti-biological attachment: Apply anti-fouling paint to the bottom of the boat and update it every 6 months.
